Supports IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af

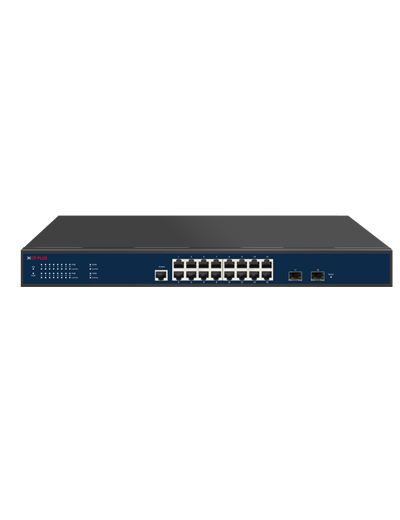

16 × Gigabit PoE+ ports and 2 × SFP uplink ports for high-speed connectivity.
Support up to 250W PoE power budget.
Layer-2+ managed switch with supports VLAN, QoS, ACL, port mirroring, link aggregation (LACP).
Store-and-forward switching mode with 8K MAC address auto learning and auto-ageing
Advanced security features including DHCP snooping, IP source guard, storm control and DoS prevention.
Supports STP, RSTP and MSTP for loop protection and reliable network operation.
LED indicators for power, PoE, link and activity status monitoring
- Network Port
- 16x10/100/1000Mbps RJ45 Ports 2x1000Mbps SFP fiber Ports 1x Console Port
- Network Medium
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) 1000Base-X:MMF,SMF
- Switching Capacity
- 36Gbps
- Packet Forwarding Rate
- 26.784Mpps
- Packet Buffer Memory
- 4.1Mbit
- MAC Address
- 8K
- Jumbo Frame
- 10KBytes
- LEDs Indicator
- Electrical port indicator, optical port indicator, power input indicator, system running indicator
- Network Standard
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af
- PoE Standard
- 802.3af/at
- Forwarding Mode
- Store-and-Forward
- PoE Pin Definition
- 1/2(+),3/6(-)
- PoE Power Budget
- 250W
- Power Supply
- AC100~240V 50/60Hz
- Operation Temperature
- 0°C~45°C(0°F~113°F)
- Operating Humidity
- 10%~90% non-condensing
- Storage Temperature
- -40°C~70°C(-40°F~158°F)
- Storage Humidity
- 5%~95% non-condensing
- Dimension
- 440mm x 190mm x 44.5mm
- L2 Switching Features
- 8K MAC Address Table 10K (10000) Jumbo Frame Flow Control: 802.3x (Full-duplex), Back-Pressure (Half-duplex) Spanning Tree: IEEE 802.1D (STP),IEEE 802.1w (RSTP),IEEE 802.1s (MSTP)/16 instances, Auto Edge Port, BPDU Filtering, ERPS Link Aggregation: IEEE 802.3ad LACP, Static Trunk, Max 8 Group, Max 8 Ports/Group, Traffic Load Balancing
- VLAN
- Surveillance VLAN: 16 OUI Mode (Auto/Manual) Voice VLAN: 16 OUI Mode (Auto/Manual) QinQ (IEEE 802.1ad): Basic GARP VLAN Registration Protocol (GVRP) 4096 Static VLAN IEEE 802.1Q Tagged-based 8 groups Protocol-based 256 MAC-based
- Multicast
- Common: 256 Multicast Groups, Immediate Leave, Static/Forbidden Router Port, Static Forbidden Forward Port, 128 profiles Filtering, Throttling IGMP Snooping: IGMP v1/v2, IGMP v3 Basic (BISS), IGMP v2/v3 Querier MLD Snooping: MLD v1/v2 Multicast VLAN Registration (MVR): IPv4
- QoS
- Trusted QoS Queue Scheduling: WRR, WFQ, Strict Pripority, Hybrid (WRR+SP or WFQ+SP) Class of Service: Port-based, 802.1p, IP TOS Precedence, IP DSCP Rate Limit: Port-based (Ingress/Egress)
- ACL
- ACL Type: L2/L3/L4, 512 MAC-based, 512 IPv4-based, 512 IPv6-based PoE Function: Power, Current, Voltage, PoE Watch Dog Access Rules: 1024
- Security
- AAA Authentication 8 TACACS+ 8 RADIUS Authentication Manager: IEEE 802.1X, MAC Auth, Web Auth, Guest VLAN, Port-based, Host based Account Manager: Local Authenticatoin, 8 Multiple User Account, Multi-Level Security (Manager/Operator), Password Recovery Procedures Management Access: Management VLAN, 256Management ACL SSL: SSLv2, SSLv3, TLSv1 WebUI: HTTPS CLI: SSH v1/v2 Port Security: 256 Dynamic Lock Storm Control: Broadcast, Unknown Multicast, Unknown Unicast Spanning Tree: BPDU Guard Protected Port (Port Isolation) Black Hole MACCPU Defence Engine DoS Prevention DHCP Snooping (with Option 82) Dynamic ARP Inspection 256 IP Source Guard IP/MAC/Port Binding (IMPB) Dynamic VLAN Assignment
- IPv6
- IPv6 Host: Auto Configuration, Static IPv6 Address and Prefix Length, Static IPv6 Default Gateway, IPv6 Neighbour Discovery (ND), IPv6 Duplicate Address Detection, ICMPv6 IPv6 Application: HTTP/HTTPS, TELNET, SSH, SNMP, TFTP, Syslog, PING, DHCPv6
- Management
- CLI: 3 sessions Console, 3 sessions Telnet (RFC854) WebUI: HTTPS SNMP(v1,v2c,v3) File Management: Firmware Upgrade/Backup, Dual Images, Configuration Download/Backup, Multiple Configurations Upload/Download: TFTP (RFC783), HTTP, UART Time Management: Local, SNTP Port Management: Friendly Port Name (Port Description), Error Disabled Recovery Line Management: Console, Telnet (RFC854), SSH v1/v2 DHCP: Client DNS: Client Software Reset Button IEEE (802.3az) 32 entries / type RMON Management
- Discovery
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP) ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
- Diagnostics
- UDLD Mirroring: 4 sessions port-based (Many to One) Syslog (RFC3164): Local RAM, Local Flash, 8 Remote Server System Diagnostics: CPU Utilization, Memory Utilization, Port Utilization , Technical Support Log Network Diagnostics: Ping Test, Traceroute
- MIB
- RFC1213 MIBII (System & Interface groups) RFC2819 RMON I (1,2,3, & 9 groups) RFC1215 Generic Traps RFC1493 Bridge RFC2674 Bridge MIB Extensions RFC2737 Entity RFC3635 Ethernet-Like RFC2863 Interface Group SNMP-Community-MIB SNMPv3-MIB
- Certificates
- ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, FCC and RoHS, TEC/ MTCTE
