Supports IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3x , 802.3az, 802.3at, 802.3af.

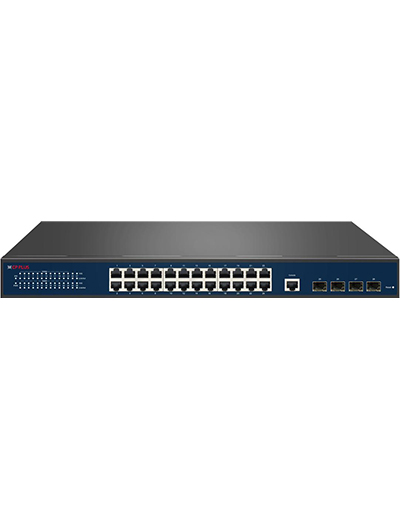

24 × Gigabit PoE+ ports and 4 × SFP uplink ports for high-speed connectivity.
Provides PoE output up to 30W per port with a total PoE power budget of 370W.
Layer-3 managed switch with static routing (IPv4/1Pv6), support DHCP Server, Qos, ACL control, support SNMP V1/V2/V3, support IGMP Snooping v1/v2
128Gbps switching capacity with 95.232Mpps forwarding rate.
Store-and-forward switching with 16K MAC table.
Supports VLAN (802.1Q), QoS (8 queues), ACL (L2/L3/L4) and LACP (Link Aggregation Control Protocol).
Equipped Advanced security including 802.1X, DHCP Snooping, IP Source Guard, DAI and DoS protection.
Supports STP/RSTP/MSTP and ERPS for loop protection and redundancy.
LED indicators available for power, PoE status, link and activity monitoring.
19-inch metal rack-mount design with internal AC power supply.
- Network Port
- 24 x 10/100/1000Mbps RJ45 PoE Ports 4 x 10000Mbps SFP Ports 1x Console Port
- Network Medium
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) 10GBase-R:MMF,SMF
- Switching Capacity
- 128Gbps
- Packet Forwarding Rate
- 95.232Mpps
- Packet Buffer Memory
- 12Mbit
- MAC Address
- 16K
- Jumbo Frame
- 10K Bytes
- LEDs Indicator
- Electrical port indicator, optical port indicator, power input indicator, system running indicator.
- Transfer Method
- Store-and-Forward
- Network Standard
- IEEE 802.3i,802.3u,802.3ab,802.3x,802.3az,802.3at,802.3af
- PoE Standard
- 802.3af/at
- PoE Pin Definition
- 1/2(+),3/6(-)
- Power Supply
- AC100~240V 50/60Hz
- PoE Power
- 370W
- Operating Temperature
- 0°C ~45°C (0°F~113°F)
- Operating Humidity
- 10%~90% non-condensing
- Storage Temperature
- 40°C ~70°C (-40°F ~158°F)
- Storage Humidity
- 5%~95% non-condensing
- Dimension
- 440mm x 290mm x 44.5 mm
- L2 Switching Features
- 8K MAC Address Table 10K (10000) Jumbo Frame Flow Control - 802.3x (Full-duplex) , Back-Pressure (Half-duplex) Spanning Tree - IEEE 802.1D (STP) , IEEE 802.1w (RSTP) , IEEE 802.1s (MSTP)/16 instances , Auto Edge Port , BPDU Filtering , ERPS Link Aggregation- IEEE 802.3ad LACP, Static Trunk, Max 8 Group, Max 8 Ports/Group, Traffic Load Balancing
- L3 Switching Features
- Static Routing - IPv4/IPv6, Address Resolution Protocol (ARP) - Static ARP
- VLAN
- Surveillance VLAN - 16 OUI Mode (Auto/Manual) Voice VLAN - 16 OUI Mode (Auto/Manual) QinQ (IEEE 802.1ad) - Basic GARP VLAN Registration Protocol (GVRP) 4096 Static VLAN/Port-based IEEE 802.1Q Tagged-based , 8 groups Protocol-based, 256 MAC-based
- Multicast
- Common - 256 Multicast Groups , Immediate Leave , Static/Forbidden Router Port , Static/ Forbidden Forward Port -,128 profiles Filtering , Throttling IGMP Snooping - IGMP v1/v2 ,IGMP v3 Basic (BISS) ,IGMP v2/v3 Querier MLD Snooping - MLD v1/v2 Multicast VLAN Registration (MVR) - IPv4
- QoS
- Queue Scheduling - WRR, WFQ , Strict Pripority, Hybrid (WRR+SP or WFQ+SP) Class of Service - Port-based , 802.1p , IP TOS Precedence , IP DSCP Rate Limit - Port-based (Ingress/Egress)
- Access Control List (ACL)
- ACL Type - L2/L3/L4 , 512 MAC-based ,512 IPv4-based , 512 IPv6-based PoE Function - Power , Current , Voltage , PoE Watch Dog Access Rules - 1024
- Security
- AAA Authentication , 8 TACACS+ , 8 RADIUS Authentication Manager- IEEE 802.1X, MAC Auth, Web Auth, Guest VLAN, Port-based, Host based Account Manager - Local Authentication, 8 Multiple User Account , Multi-Level Securiy (Manager/Operator) , Password Recovery Procedures Management Access - Management VLAN , 256Management ACL SSL - SSLv2 ,SSLv3 ,TLSv1 WebUI - HTTPS CLI - SSH v1/v2 Port Security - 256 Dynamic Lock Storm Control - Broadcast , Unknown Multicast , Unknown Unicast Spanning Tree - BPDU Guard Protected Port (Port Isolation) , Black Hole MAC , CPU Defence Engine , DoS Prevention , DHCP Snooping (with Option 82) , Dynamic ARP Inspection , 256 IP Source Guard , IP/MAC/Port Binding (IMPB) , Dynamic VLAN Assignment
- IPv6
- IPv6 Host - Auto Configuration ,Static IPv6 Address and Prefix Length , Static IPv6 Default Gateway , IPv6 Neighbor Discovery (ND) , IPv6 Duplicate Address Detection , ICMPv6 IPv6 Application - HTTP/HTTPS -,TELNET , SSH , SNMP , TFTP , Syslog , PING , DHCPv6
- Management
- CLI - 3 sessions Console , 3 sessions Telnet (RFC854) WebUI - HTTPS SNMP(v1,v2c,v3) File Management - Firmware Upgrade/Backup , Dual Images , Configuration Download/ Backup ,Multiple Configurations Upload/Download - TFTP (RFC783) ,HTTP , UART Time Management - Local - SNTP Port Management - Friendly Port Name (Port Description) ,Error Disabled Recovery Line Management - Console , Telnet (RFC854) , SSH v1/v2 DHCP - Client , DNS - Client , Software Reset Button ,IEEE (802.3az) 32 entries / type RMON Management
- Discovery
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP), ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
- Diagnostics
- UDLD ,Mirroring - 4 sessions port-based (Many to One) ,Syslog (RFC3164) - Local RAM - Local Flash - 8 Remote Server ,System Diagnostics - CPU Utilization - Memory Utilization - Port Utilization - Technical Support Log ,Port Diagnostics - Cable Test - Fiber Module Status ,Network Diagnostics - Ping Test - Tracerout
- MIB
- RFC1213 MIBII (System & Interface groups) ,RFC2819 RMON I (1,2,3, & 9 groups) ,RFC1215 Generic Traps, RFC1493 Bridge ,RFC2674 Bridge MIB Extensions ,RFC2737 Entity ,RFC3635 Ethernet-Like ,RFC2863 Interface Group ,SNMP-Community-MIB, SNMPv3-MIB
- Certificates
- ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, FCC and RoHS, TEC/ MTCTE
