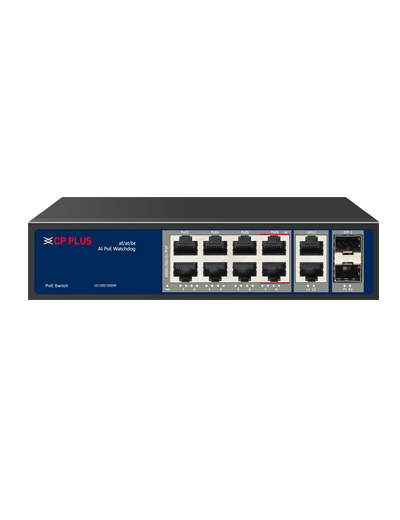

Using CAT.5 network patch cords support power for the wireless AP and IP camera.
Upload port automatic flip (Auto MDI / MDIX).
Intelligent power distribution and secure power supply system.
The port power is 60 watts, it is convenient for high-power device.
Zero configuration feature power supply is automatically supplied to the adaptive equipment.
- Networking standard
- IEEE802.3af/at/bt.
- PoE Watchdog AI Function
- Detection front-end PoE cameras and PD, Automatic detection, Automatic restart.
- Network performance
- Store-and-forward.
- Network Port
- PoE (1~6) :10/100/1000Mbps PoE ports (RJ45) PoE (7~8) :10/100/1000Mbps PoE ports, BT port, Compatible uplink ports (RJ45) LAN (1~2):10/100/1000Mbps uplink port (RJ45) SFP (1~2):10/100/1000Mbp uplink ports (SFP)
- Network Standard
- IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet
- Transmission Rate
- 2000Mbps Full Duplex; 10 or 100 or 1000Mbps Half Duplex
- Transmission Distance
- 1~100m
- MAC Address Table
- 8K
- Bandwidth
- 24.0 Gbps
- Network Latency
- (10 to 100Mbps): ≤16μs (use the 64byte package size)
- Frame Filter & Transmission Rate
- 14800pps the most for 10Mbps port, 148800pps the most for 100Mbps port, 1488000pps the most for 1000Mbps port
- Power Budget
- 120W
- Power Input
- AC 180~240V, Total ≤120W
- Watchdog
- Port 1~8
- Power Output
- PoE 1~6 Port: 1/2(+52V), 3/6 (GND) PoE 6~8Port:1245(+53V), 3678(GND) compatible1/2(+52V),3/6 (GND)≤60W
- Lightning Protection
- 6KV
- Operating Temperature
- -30°C ~60°C
- Working Humidity
- 10%~90% (Non-condensing)
- Storage Temperature
- -40°C ~70°C
- Storage Humidity
- 5%~90% (Non-condensing)
- Dimensions
- 187mm(L) x 139mm(W) x 43mm(H)
- Warranty
- 2 Year
- Package Content
- AC Power Cable, Installation Manual
