Support bt 60W High Power

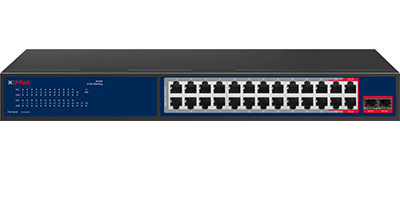

24 ports PoE + 2 ports Uplink + 2 ports SFP
AI Watchdog Function
Watchdog Function Port 1~24
- Networking standard
- IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet
- Support
- 6KV Lightning and 8KV ESD Protection
- PoE Power Budget
- 300W
- Network Standard
- IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, I EEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet
- Network Port
- PoE (1~22):10/100Mbps PoE ports (RJ45) PoE (23~24):10/100Mbps PoE ports,Support bt 60W High Power LAN(25~26):10/100/1000Mbps uplink ports (RJ45) SFP(27~28):10/100/1000Mbps SFP port
- MAC Address List
- 4K
- Transmission Distance
- 100Mbps /10Mbps ,Auto-Adaption 250Mtr
- Transmission Rate
- 2000Mbps Full Duplex; 10 or 100 or 1000 Mbps Half Duplex
- AI Watchdog
- Port 1~24
- Network Latency
- (10 to 1000Mbps): ≤16μs (use the 64byte package size)
- ESD Protection
- 8KV, Per: IEC61000-4-2
- Operating Temperature
- -30°C~60°C
- Storage Temperature
- -30°C~60°C
- Storage Humidity
- 5%~90% Non-condensing
- Operating Humidity
- 5%~90% Non-condensing
- Power Input
- AC 90~240V Total≤300W
- Power Output
- PoE1~22 Port:1/2(+52V),3/6(GND)≤30W PoE23~24 Port:1245(+53V),3678(GND) Compatible1/2(+52V),3/6(GND)≤60W
- Package Content
- AC Power Cable, User Manual
- Dimension
- 430mm(L) x 180mm(W) x 45mm(H)
- Weight
- 2.65KG
