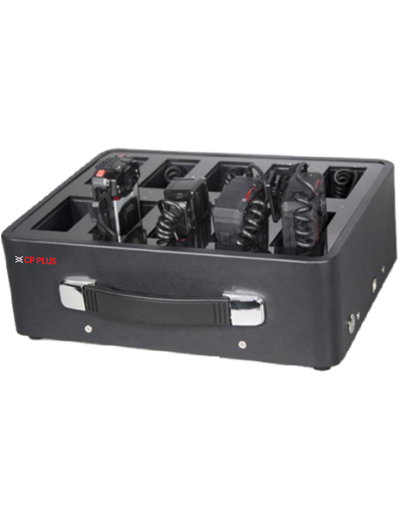

10 Port Docking Station.
The charging slot adopts cabin type dock design.
The charging current is 1A-1.5A, supporting charging protection.
USB 2.0 HUB, transmission rate ≥400M/min.
Reliability Test MTBF≥20000h.
Support automatic Charging (when body worn camera connect to docking station): The charging current is 1A-1.5A, supporting charging protection
- Docking Slot
- The charging slot adopts cabin type dock design
- Docking Slot Number
- 10 pcs
- Indicator Light 1
- The red light LED is the power indicator, the red light will be on after power on
- Indicator Light 2
- Green LED lights up after detecting a successful connection, and flashes when data is being transmitted
- Switch
- Rocker switch, main power switch with light
- Power on Switch
- Power on switch M16 with lock and light
- AC Socket
- AC socket, national standard
- Product Material
- Use sheet metal integrated chassis, paint, integrated independent design; the shell material is 1.0mm cold rolled steel plate, and the surface is treated with anti-static powder coating
- Data Line
- Compatible with mainstream data lines such as MINI USB, Apple, Micro USB, Type-c, etc
- Support Charging Protection
- Hardware automatic detection function, automatically disconnect the charging channel when the battery is full
- Reliability Test
- MTBF≥20000h
- Fuse
- 220V 2A
- USB Interface
- USB 2.0 HUB, transmission rate ≥400M/min
- Operating Temperature
- -10˚C ~ 50˚C Surface air flow
- Storage Temperature
- -20˚C ~ 60˚C
- Storage Humidity
- 95%@40˚C
- Dimension
- 320mm x 250mm x 100mm
- Weight
- 9.7kg
