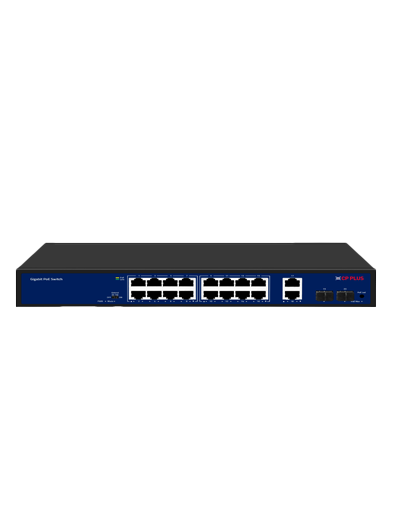

16 port, 10/100/1000Mbps,RJ45 ports, Max. 30W Output of Single PoE Port
Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x
2 Uplink port, 1000Mbps with Transmission distance of 0-100m
Support ESD, Surge Protection
Bult-in Power Supply
- Easy and safe installation
- wall-mounting, desktop, Kensington security slot , Plug-and-play.
- Uplink Ports
- 2 Uplink Port, 1000Mbps RJ45 ports & 2 Gigabit SFP ports
- Switch Capacity
- 40Gbps Full duplex
- Packet Forwarding Rate
- 29.76Mpps
- Port
- 20
- PoE Ports
- 16, 10/100/1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
- Transmission Distance
- 0-100m/1000Mbps or Port 9-16 Max. 250m/10Mbps via Cat.5e or more under Extend mode
- MAC Address List
- 8K
- PoE Feature
- All ports support MDI/MDIX
- PoE Standard
- IEEE802.3af, IEEE802.3at
- Packet Buffer
- 3Mb
- Watchdog
- Support
- Surge Protection
- Common mode/RJ45 port: 4KV Differential mode/RJ45 port: 2KV Common mode/Power board: 4KV Differential mode/Power board: 2KV
- ESD Protection
- Air discharge: 8KV, Contact discharge: 6KV
- PWR (Power Indicator)
- Light on: Powering Light off: No Power
- Operating Mode
- Light off: Normal mode
- 1-20 Indicator (Link & Data)
- Green light off: Link is disconnected, Green light on: Link is connected, Green light flash: Data Transmitting
- 1-16 Indicator (PoE)
- Yellow light off: PoE not powering, Yellow light on: PoE powering
- PoE Max Indicator
- Light off: Indicates PoE power usage is less than 90%, Light flash: Indicates PoE power usage 90%≤P≤95%, Light on: Indicates PoE power usage 95%
- PoE Led Button
- It is used to switch whether the 1-16 indicator lights indicate the Link/Data status or the PoE status; Default indicates Link/Data status
- Extend Switch
- OFF: All ports can communicate with each other, the transmission rate is 10/100/1000Mbps adaptive, and the watchdog function is turned, off
- ON: 9-16 ports can extend the transmission distance of the network cable to Max. 250 meters, the transmission rate becomes 10Mbps, and the watchdog function is turned on
- Network protocol and Standard
- IEEE802.3/802.3u/802.3ab/802.3z/802.3x
- Forwarding Mode
- Store-and-forward
- Operating Temperature
- -10°C-50°C
- Operating Humidity
- 10%-95% , non-condensing
- Storage Temperature
- -40°C-70°C
- PoE Power Supply
- 1/2(+),3/6(-)
- PoE Power Budget
- 200W
- Power Source
- Bult-in Power Supply, Input: 110-240V AC, 50/60Hz
- Power Consumption
- <5W
- Dimension
- 320mm x207mm x 44mm
- Weight
- 1.78kg
