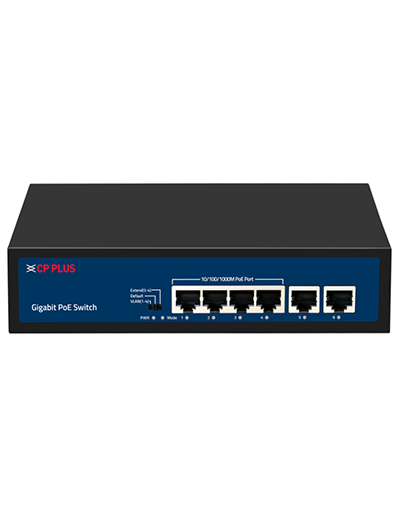

4, 1000Mbps, RJ45 ports, Max. 30W Output of Single PoE Port
Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE802.3x
- Uplink Port
- 2, 1000Mbps, Transmission Distance: Default: 0-100m
- PoE Power Budget
- 48W
- Uplink Ports
- 2, 1000Mbps, Transmission Distance: Default: 0-100m
- Network Standard
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE802.3x
- Switch Capacity
- 12 Gbps Full duplex
- Packet Forwarding Rate
- 1.488 Mpps/port
- PoE Ports
- 4, 1000Mbps
- RJ45 ports
- Max. 30W Output of Single PoE Port Transmission distance:0~100m or 0~250m selected by switch
- Power Indicator
- Light on: Powering Light off: No Power
- Network Port
- 6 Ports
- Transmission Distance
- 0-100m/1000Mbps or Port 3-4 Max. 250m/10Mbps via Cat.5e or more under Extend mode
- PoE Standard
- IEEE802.3af, IEEE802.3at
- Watchdog
- Support
- PoE Power Supply
- 1/2(+), 3/6(-)
- PoE Power Budget
- 48W
- VLAN
- Support
- Surge Protection
- Common mode/RJ45 port: 6KV, Differential mode/RJ45 port: 2KV, Common mode/ Power board: 6KV, Differential mode/Power board: 1KV
- Forwarding Mode
- Store-and-forward
- MAC Address Table
- 2K
- DIP switch indicator
- Green light off: Normal/Default mode, Green light on: VLAN mode, Green light flash: Extend mode
- ESD
- Air discharge: 8KV, Contact discharge: 6KV
- RJ-45 ACT Indicator
- Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting
- PoE Feature
- All ports support MDI/MDIX
- Power Source
- Input: 100-240V AC, 50/60Hz
- Power Consumption
- <5W
- Operating Temperature
- -10°C ~50°C
- Operating Humidity
- 10%-95%, Non-condensing
- Storage Temperature
- -40°C~70°C
- Dimensions
- 200 mm x 118 mm x 44 mm
- Weight
- 600 g
