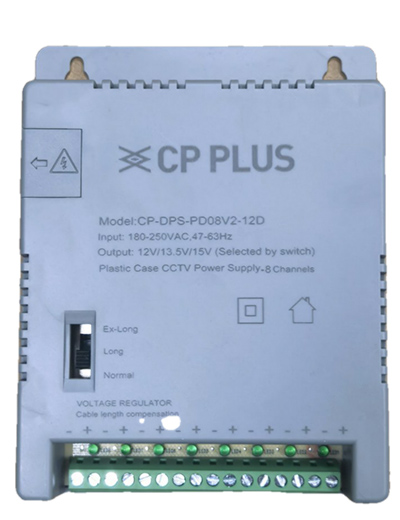

8 Channel Output
With Cable Compensation Switch
LED Indicator for Each Channel
Built-in EMI Filter to Nullify Interference
Cooling by Free Air Convection
Built-in Constant Current Limiting Circuit
100% Full Load Built-in test
Plastic Housing
- Input voltage
- 200~240V AC
- Output voltage
- 12V DC
- Current Range
- 0~5A
- Rated Power
- 60W
- Ripple & Noise (max.)
- 120mVp-p
- Voltage Adj. Range
- 11.4~12.6V
- Line Regulation
- ±1.0%
- Voltage Tolerance
- n/a
- Setup Rise time
- 2500ms, 15ms at full load
- Hold Up Time (Typ.)
- 20ms at full load
- Load Regulation
- ±5.0%
- Temperature coefficient
- ±0.03%/°C (0~50°C)
- Frequency Range
- 47~63HZ
- Efficiency (Typ.)
- 86%
- AC Current (Typ.)
- 1A/220VAC
- Inrush Current (Typ.)
- Cold Start: 40A/220V AC
- Leakage Current
- <2mA / 240VAC
- Over Load
- 110~200% rated output power, Protection type: Shut down O/P, recovers automatically
- Isolation Resistance
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500V DC / 25°C/ 70% RH
- Working Humidity
- 20 ~ 90% RH Non-condensing
- Vibration
- 10 ~ 500Hz, 3G 10min./1 cycle, 60min. each along X, Y, Z
- Dimension
- 144(L) x 109.5(W) x 33mm(H)
- Store temperature
- -20 ~ +85°C
- Working temperature
- -20 ~ +45°C
- Withstand Voltage
- I/P-O/P: 1.5KVAC I/ P-FG: 1.5KVAC O/P-FG: 0.5KVAC
