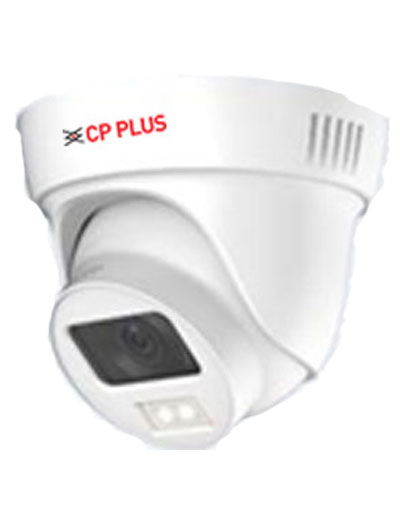

1/2.7" 5MP PS CMOS Image Sensor (0.9407cm)
Max 25/30fps@5MP
DWDR, 2D-DNR, AWB, AGC, BLC, HLC
3.6mm Fixed Lens
Illumination Distance of 20 Mtrs, IP67
Support Built-in Mic
CVI/CVBS/AHD/TVI switchable
- Image Sensor
- 1/2.7" 5MP PS CMOS (0.9407cm)
- Minimum Illumination
- 0.005Lux/F1.6, 0Lux White Light on
- BodyType
- Dome
- Shutter Speed
- PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
- Max Aperture
- F1.6
- White Balance
- Auto/Manual
- Lens Type
- Fixed
- Lens
- 3.6mm
- Gain Control (AGC)
- Auto/Manual
- DORI Distance
- 3.6mm: 80m(Detect), 32m(Observe), 16m(Recognize), 8m(Identify)
- Angle of View
- 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical)
- S/N Ratio
- >65dB
- Back Light Comp.
- BLC/ HLC/ DWDR
- Video Streaming
- CVI: PAL: 5M@25fps
- 4M@25fps
- 1080P@25fps
- NTSC: 5M@25fps
- 4M@30fps
- 1080P@30fps
- AHD: PAL: 4M@25fps
- NTSC: 4M@30fps TVI: PAL: 4M@25fps
- NTSC: 4M@30fps CVBS: PAL: 960H
- NTSC: 960H
- Privacy Mask
- Off/on (8 area, rectangle)
- Video Output
- Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Audio Input
- Built-in Mic
- Illumination Distance
- Illumination Range of 20 Mtr.
- Operating Temperature
- -40°C ~ +55°C; Less than <95% RH (non-condensation)
- Power Source
- 12V DC ±30%
- Power Consumption
- Max 3.0W (12V DC, White Light on)
- Weatherproof Standard
- IP67
- Dimension
- φ97 mm × 86.6 mm
- Casing
- Plastic
