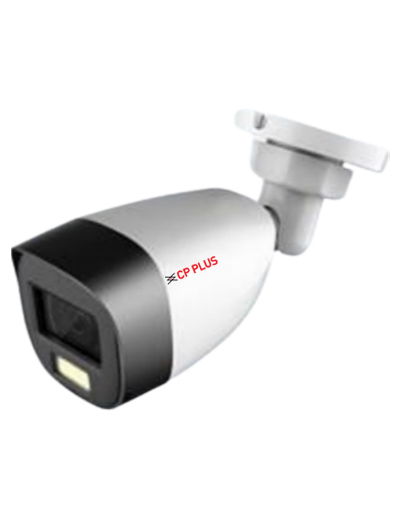

1/2.8" 2.4MP CMOS Image Sensor (0.9071 centimetres)
Max 25/30fps@2.4MP
DWDR, 2D-DNR, AWB, AGC, BLC
3.6mm Fixed lens (2.8mm Optional)
Illumination Distance of 20 Mtrs, IP67
Support 24/7 color Imaging
Support Built-in Mic
CVI/CVBS/AHD/TVI switchable
- Image Sensor
- 1/2.8" 2.4MP CMOS (0.9071 centimetres)
- Minimum Illumination
- 0.01Lux/F1.6, 0 Lux white light on
- Lens
- 3.6mm (2.8mm Optional)
- Max Aperture
- F1.6
- Lens Type
- Fixed-focal
- DNR
- 2D-NR
- DORI Distance
- 2.8mm: 43.9m (Detect) 17.5m (Observe) 8.8m (Recognize) 4.4mm (Identify) 3.6mm: 55.2m (Detect) 22.1m (Observe) 11.0m (Recognize) 5.5mm (Identify)
- Close Focus Distance
- 2.8mm: 0.7m ; 3.6mm: 1.2m
- Angle of View
- 2.8mm: 126.2° × 106° × 56.5° (diagonal × horizontal × vertical) 3.6mm: 103.6° × 86.9° × 46.3° (diagonal × horizontal × vertical)
- White Balance
- Auto/ Manual
- Back Light Compensation
- BLC/ DWDR
- Shutter Speed
- PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
- Iris
- Fixed
- Gain Control (AGC)
- Auto/Manual
- Privacy Mask
- Off/On (8 area, rectangle)
- Audio
- Built-in Mic
- Video Streaming
- CVI: PAL: 1080P@25fps
- 720P@25fps
- NTSC: 1080P@30fps
- 720P@30fps
- AHD: PAL: 1080P@25fps
- NTSC: 1080P@30fps TVI: PAL: 1080P@25fps
- NTSC: 1080P@30fps
- CVBS: PAL: 960H
- NTSC: 960H
- Illumination Distance
- IR Distance of 20 Mtr.
- Operating Temperature
- -40°C ~ +60°C (-40°F to 140°)
- Humidity
- <95% RH (non-condensation)
- Storage Temperature
- -40°C ~ +60°C (-40°F to 140°) <95% RH (non-condensation)
- Power Source
- 12V DC ±30%
- Power Consumption
- Max 3.1W (12V DC, White Light on)
- Weatherproof Standard
- IP67
- Casing
- Plastic
- Dimension
- 161.3 mm × 69.7 mm × 70.0 mm
