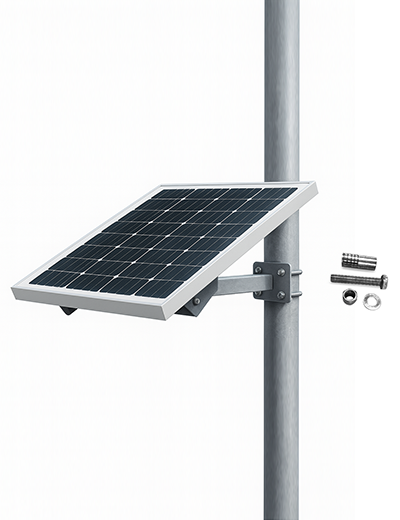

The maximum power output is 30W.
Backup time 12 Hours (Assumption based on 76.8Wh Battery Capacity and 5.5 Watt continuous load)
- Indications LED Battery charging
- Green Blink
- Indications LED Full charge
- Green ON
- Indications LED Battery discharge
- Red ON
- Cell Type
- Monocrystalline
- No. of cells
- 32
- Open circuit voltage
- 22.9 V+/- 10%
- Short circuit current
- 1.59 A +/-
- Voltage at Maximum power
- 19.25 V +/- 10%
- Current at Maximum power
- 1.56 A +/- 10%
- Maximum Power
- 30 W
- Nominal Operating Cell Temperature
- 45 °C ± 2 °C
- Panel operating Temperatures
- -20 °C to +65 °C
- Dimensions
- 510mm x 425mm x 17mm
- Charge current
- Up to 1.5 A (Depends on Solar irradiation and Battery SOC)
- Configuration
- 4S-1P
- Capacity
- 76.8Wh
- Charge Cutoff Voltage
- 14.6V +/- 10%
- Cycle Life
- 1000 @ 90% DOD
- Working Temperature
- 0°C~60°C (Discharge), 0°C~45°C (Charge)
- Battery packaging
- PVC
- Dimension
- 70 mm x 130 mm x 35 mm (±10) mm
- Voltage During Charging
- 12V (+/-10%), Will be adjusted slightly based on Cable length
- Voltage During Discharging
- 12V (+/- 10%), Will be adjusted slightly based on Cable length
- Maximum Load Current During Charging
- 1A
- Cable Length
- 3 Mtr.
- Load
- 12 Watt Camera load (Load varies from 2.65 Watt to 10
- Backup time
- 12 Hours (Assumption based on 76.8Wh Battery Capacity and 5.5 Watt continuous load) Battery backup may vary based on the change in Power consumption
- LED
- 1.Battery charging: Green Blink 2.Full charge: Green ON 3.Battery discharge: Red ON
- Battery primary protection
- Using a separate PCB inside the battery pack to protect from all kinds of faults and issues men t ioned below. 1.Over current and Short circuit protection 2.Over voltage protection 3.Under voltage protection 4.Over charge protection 5.Deep discharge protection 6.Over temperature protection
- Fasteners
- U-Bolt – 101.6 mm, Hose Clamp – 150 mm
- Dimension.
- 550 mm x 450 mm x 105 mm
- Output port
- Cable with compatible Power jack
