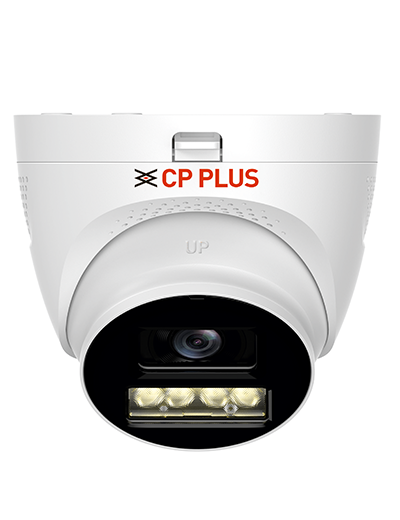

1/3" 2.4MP PS CMOS Image Sensor (0.84667 centimeters)
Max. 2.4MP (1920×1080)@30fps
DWDR, Day/Night (ICR), 3D NR, BLC, HLC
3.6mm Lens (2.8 mm optional)
IR Range of 40 Mtr., Smart IR, Smart Dual Light
Support Two-way Talk*, IP67
- Image Sensor
- 1/3
- Max. Resolution
- 1920 (H) × 1080 (V)
- Resolution
- 2MP (1920 × 1080), 960H (960 × 576/ 960 × 480)
- Shutter Speed
- PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s
- Minimum Illumination
- 0.01 lux@F2.0 (Color, 30 IRE), 0.001 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on)
- IR Control
- Auto, Manual
- S/N Ratio
- >55dB
- Angle Adjustment
- Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
- Audio
- Built-in Mic, up to 8 m
- Two-way talk
- Support*
- IR Number
- 4 (Multi-core light)
- IR
- IR Range of 40 Mtr.
- Lens Type
- Fixed-focal
- Lens Mount
- M12
- Lens
- 3.6mm Lens (2.8mm Optional)
- Max. Aperture
- F2.0
- Close Focus Distance
- 3.6 mm: 0.7 m; 2.8 mm: 0.5 m
- White Balance
- Auto
- DORI Distance
- Lens 3.6 mm: 49.9 m (Detect), 20.0 m (Observe), 10.0 m (Recognize), 5.0 m (Identify); Lens 2.8 mm: 40.6 m (Detect), 16.2 m (Observe), 8.1 m (Recognize), 4.1 m (Identify)
- Gain Control (AGC)
- Auto, Manual
- Day/Night
- Auto(ICR)/Color/B/W
- Back Light Compensation
- BLC/ HLC/ DWDR
- Noise Reduction
- 2D NR
- Frame Rate
- CVI: PAL: 1080p@25 fps
- NTSC: 1080p@30 fps
- AHD: PAL: 1080p@25 fps
- NTSC: 1080p@30 fps
- TVI: PAL: 1080p@25 fps
- NTSC: 1080p@30 fps
- CVBS: PAL: 960H
- NTSC: 960H
- IR Mode
- Smart IR&WL, WL Mode, IR
- Mirror Function
- Support
- Camera Audio
- CVI, TVI
- Anti-corrosion Level
- Basic Protection
- Power Source
- 12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one cam era)
- Power Consumption
- Max 9.37 W (12 VDC, IR on)
- Operating Temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity
- <95% (RH), non-condensing
- Storage Temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
- Storage Humidity
- <95% (RH), non-condensing
- Casing
- Dome (metal + plastic) + plastic enclosure
- Dimension
- 109.9 mm × 105.9 mm
