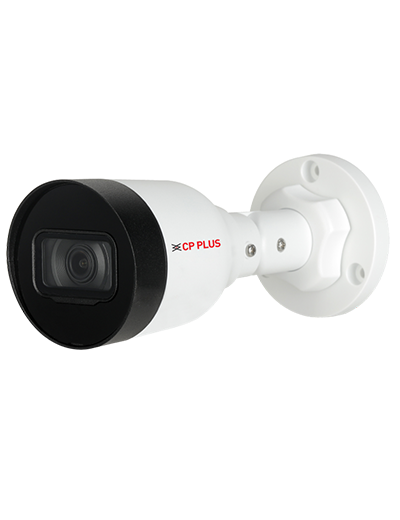

1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters)
Max. 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30fps
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
Support Triple stream
DWDR, Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC, Digital watermarking
3.6mm fixed Lens
IR Range of 30 Mtr., IP67, PoE
- Image Sensor
- 1/2.9
- Effective Pixels
- 2688(H) × 1520(V)
- Minimum Illumination
- 0.03 lux@F2.0 (Color, 30 IRE), 0.003 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on)
- Angle Adjustment
- Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
- Shutter Speed
- Auto/Manual 1/3 s–1/100,000 s
- White Balance
- Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
- RAM
- 128 MB
- ROM
- 128 MB
- DORI Distance
- 76.0 m (Detect), 30.4 m (Observe), 15.2 m (Recognize), 7.6 m (Identify)
- Gain Control (AGC)
- Auto, Manual
- Lens Type
- Fixed-focal
- Max. Aperture
- F2.0
- Lens Mount
- M12
- Close Focus Distance
- 1.3 m
- Lens
- 3.6mm fixed Lens
- Video Compression
- Instastream, H.265, H.264, H.264H, H.264B, MJPEG (only supported by the sub stream)
- S/N Ratio
- >56dB
- Angle of View
- H: 78°, V: 43°, D: 92°
- Back Light Compensation
- BLC/ HLC/ DWDR
- IR
- IR Range of 30 Mtr.
- Smart IR
- Support
- IR Number
- 1 IR LED
- Resolution
- 4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240)
- Mirror Function
- Support
- Iris Control
- Fixed
- Day/Night
- Auto(ICR)/Color/B/W
- stream Capability
- Triple stream
- Frame Rate
- Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30fps Sub stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps
- IR Control
- Auto, Manual
- Smart search
- Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
- Noise Reduction
- 3D NR
- Motion Detection
- OFF/ON (8 areas, rectangular)
- Video Format
- PAL/NTSC
- OSD
- Camera title, Date & Time
- Audio Compression
- G.711a, G.711Mu, PCM, G.726,
- Bit Rate
- H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps
- Bit Rate Control
- CBR/VBR
- Human body Detection
- Support the classification and accurate detection of human
- Protocol
- FTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
- SDK and API
- Support
- Ethernet
- RJ-45 (10/100 Base-T)
- Alarm Event
- Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception
- Certificates
- ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report
- Power Source
- 12 VDC/ PoE (802.3af)
- Power Consumption
- Basic: 1.5 W (12 VDC), 1.9 W (PoE); Max. (H.265 + intelligence on + DWDR+ IR intensity): 3.5 W (12 VDC), 4.3 W (PoE)
- User/Host
- 6 (Total bandwidth: 36 M)
- Browser
- IE, Chrome, Firefox
- Operating Temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity
- ≤95%(RH), non-condensing
- Storage Temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
- Storage Humidity
- ≤95%(RH), non-condensing
- Dimension
- 162.6 mm × 70 mm × 70 mm
- Casing
- Metal
- Weight
- 220g
