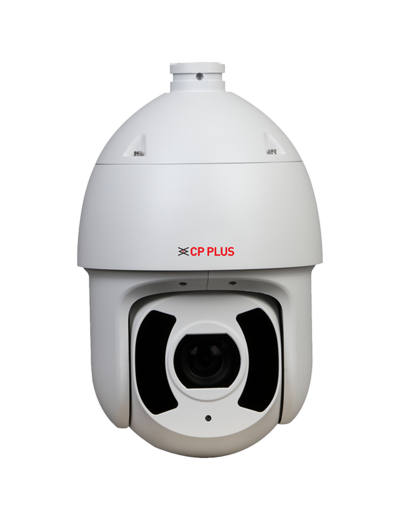

1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeter)
1920 (H) × 1080 (V)@ 25/30fps
Powerful 45x Optical and 16x Digital zoom
WDR(120dB), 2D/3D DNR, Day/Night(ICR), ROI, Defog, AWB, BLC, HLC, AGC
Up to 300 Presets, 5 Scan, 8 Tour, 5 Pattern
Support Starlight Technology
IR Range of 300 Mtr.
IP67, IK10, Support PoE+
- Image Sensor
- 1/2.8” 2MP PS CMOS Image Sensor (0.9071 centimeter)
- Effective Pixels
- 1920(H) x 1080(V)
- Minimum Illumination
- Color: 0.005 Lux@F1.6, B/W: 0.0005 Lux@F1.6, 0 Lux@F1.6 (IR on)
- Focus Control
- Auto/Semi-Auto/Manual
- RAM
- 512 MB
- ROM
- 256 MB
- White Balance
- Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp
- Lens
- 3.95 mm–177.75 mm
- Max. Aperture
- F1.6–F4.95
- Angle of view
- H: 65.7°–1.9°, V: 39.4°–1.1°, D: 73.1°–2.1°
- Close Focus Distance
- 0.1 Mtr. – 1 Mtr.
- Iris Control
- Auto/Manual
- DORI Distance
- 2451.7 Mtr. (Detect), 972.9 Mtr. (Observe), 490.3 Mtr. (Recognize), 245.2 Mtr. (Identify)
- Electronic Shutter
- 1/1 s–1/30,000 s
- Back Light Compensation
- BLC / HLC / WDR(120dB)
- S/N Ratio
- ≥ 55 dB
- Optical Zoom
- 45×
- Digital Zoom
- 16x
- Image Rotation
- 180°
- Pan & Tilt Range
- Pan: 0° to 360° endless, Tilt: –20° to +90°, auto flip 180°
- Power-off Memory
- Support
- Manual Speed
- Pan: 0.1° ~260° /s, Tilt: 0.1° ~120° /s
- Preset Speed
- Pan: 300°/s, Tilt: 200°/s
- Image Stabilization
- Electronic (EIS)
- Privacy Masking
- Up to 24 Areas can be set, with up to 8 areas in the same view
- Special Features
- Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan
- Idle Motion
- Preset/ Tour/ Pattern/ Scanning
- Defog
- Electronic
- IR Distance
- 300 Mtr.
- IR Number
- 6 (IR)
- IR Control
- Zoom Prio, Manual, Smart IR, Off
- Day/Night
- Auto (ICR)/Color/B/W
- Gain Control
- Auto/Manual
- Video Format
- PAL/NTSC
- OSD
- Camera title, Date & Time
- Video Compression
- Instastream, H.265, H.264H, H.264B, H.264, MJPEG(Sub Stream)
- Resolution
- 2MP (1920 × 1080), 1MP (1280 × 720), D1 (704 × 576), CIF (352 × 288)
- Frame Rate
- Main stream: 2MP/1MP/D1 @(1–25/30 fps) Sub stream 1: 2MP/1MP/D1 @(1–25/30 fps) Sub stream 2:D1/CIF @(1–25/30 fps) Sub stream 3: D1/CIF @(1–25/30 fps)
- Stream Capability
- Quad Stream
- Bit Rate
- H264: 64 kbps–8192 kbps, H265: 25 kbps–6400 kbps
- Bit Rate Control
- CBR/VBR
- Motion Detection
- Support
- ROI
- Support
- Noise Reduction
- 2D/3D DNR
- Two-way talk
- Support
- Audio In
- 1 channel
- Audio Out
- 1 channel
- Audio Compression
- PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1
- Alarm I/O
- 7/2 channel In/Out
- User/Host
- 20 (total bandwidth: 64 Mbps)
- Ethernet
- RJ-45 (10/100Base-T)
- Alarm Event
- Motion/Tampering detection, audio detection, network disconnection detection, IP conflict detection, memory card state detection, memory space detection
- Protocol
- IPv4, IPv6, HTTP, HTTPS, ARP, RTSPS, SMTP, SFTP, DHCP, DNS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP V1/V2/V3, ICMP,IGMP, ONVIF (Profile S, Profile G, Profile T), Unicast, Multicast
- IVS (Optional)
- Tripwire, Intrusion, Object Abandon/ Missing, IMD (Intelligent motion detection), Face Detection
- Cyber Security
- AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
- Storage
- SFTP, NAS, Micro SD card (Support max. 512 GB)
- Browser
- Microsoft Edge and Chrome
- Operating Temperature
- –40 °C to +70 °C
- Operating Humidity
- ≤ 95% RH, Non condensing
- SR 332
- Quality Level II
- Weatherproof Standard
- IP67, IK10, TVS 8000V lightning proof, surge protection, voltage transient protection
- Certificates
- MTBF Certificate from STQC, EMI/EMC, ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report
- Power Source
- 24 VDC, 2.5 A ± 25% PoE+ (802.3at)
- Power Consumption
- 24 VDC, 2.5 A ± 25%: Basic: 13 W, Max: 25 W (illuminator + PTZ) , PoE+ (802.3at): Basic: 13 W, Max: 25 W (illuminator + PTZ)
- Casing
- Metal
- Dimension
- 337.4mm × 209mm
- Weight
- 5.9 kg
