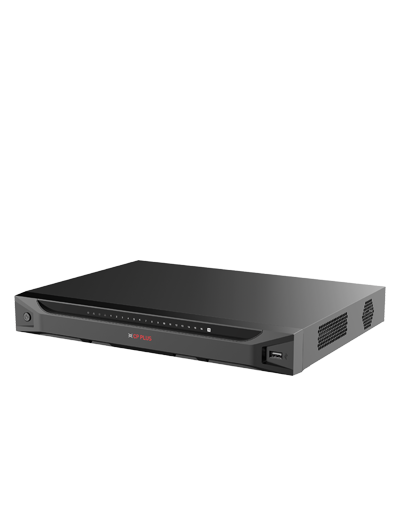

Industrial-grade processor with Embedded Linux OS
Instastream/H.265/H.264 /Smart H.264 /H.264 decoding formats
Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth
Support 2 SATA HDDs up to 20TB, 2 USB ports(2.0)
HDMI / VGA simultaneous video output
Support Multi-brand network cameras
ONVIF Version 22.12
- Max. decoding capability
- 6 × 1080p@30 fps
- Mobile Software
- iCMOB, gCMOB
- Processor
- Industrial-Grade Processor
- Operating System
- Embedded LINUX
- IP Camera Input
- 8Ch.
- User Interface
- Web, Local GUI
- AI by NVR
- SMD Plus
- Video Output
- HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
- SMD Plus by Camera
- 4 channels
- Video Compression
- H.265, Smart H.264+, H.264, MJPEG
- Encode Strategy
- Instastream
- Resolution
- 5 MP; 4 MP; 3 MP; 1080p; 720p;
- Multi Screen Preview
- 1/4/8/9
- Network Bandwidth
- 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
- Decoding Capability
- AI disabled: 1-channel 12 MP@30 fps
- 1-channel 8 MP@30 fps
- 2-channel 5 MP@30 fps
- 3- channel 4 MP@30 fps
- 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps
- 1- channel 5 MP@30 fps
- 2-channel 4 MP@30 fps
- 4-channel 1080p@30 fps
- Record Mode
- General, motion detection; intelligent; alarm
- Audio Input
- 1-channel RCA
- Audio Output
- 1-channel RCA
- Smart Phone
- iPhone, iPad, Android Phone
- Hard Disk
- 2 SATA ports, up to 20TB each
- General Alarm
- Motion detection; camera external alarm; PIR alarm
- Recording Mode
- Manual, Schedule, Continuous, MD (Motion Detection), Alarm, IVS
- Browser
- Chrome; IE; Safari; Edge; Firefox
- Playback
- Instant playback; general playback; event playback; tag playback; smart playback
- Backup Mode
- USB Device / Network
- Interface Ports
- 1 HDMI, 1 VGA, 2 USB Ports(1 Rear USB2.0, 1 Front USB2.0)
- Multi-channel Playback
- Up to 8 channels
- Ethernet
- 1 RJ-45 port (10/100Mbps)
- Protocols
- HTTPS
- TCP/IP
- IPv4
- IPv6
- UDP
- NTP
- DHCP
- DNS
- SMTP
- IP Filter
- DDNS
- IP Search (Supports IP camera, DVR, Dh, NVS, etc.)
- Auto Registration, ONVIF 22.12(Profile T
- Profile S
- Profile G)
- CGI
- SDK
- Operating Temperature
- –10 °C to +55 °C (14 °F to +131 °F)
- Operating Humidity
- 10%–93% (RH), non-condensing
- Storage Temperature
- –20 °C to +60 °C (–4 °F to +140 °F)
- Power Supply
- DC12V/2A
- Power Consumption
- <10 W (without HDD)
- Dimensions
- 375mm x 275mm x 53mm
- Weight
- 1.49 kg
