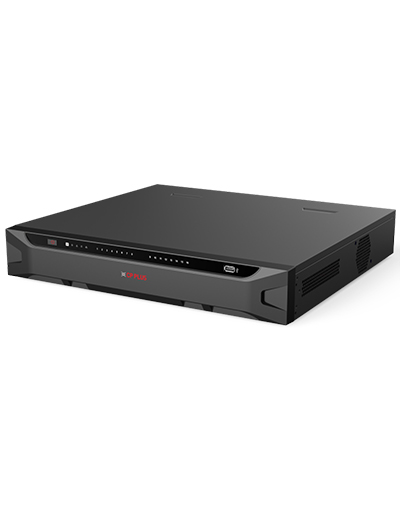

Up to 64 channel IP camera input
Max. 384 Mbps incoming/recording/outgoing bandwidth
Max. 32 × 1080p@30 fps or 32 × 2MP@30 fps decoding capability
Instastream, H.265, H.264, H.264, MJPEG codec decoding
Support 4 SATA HDDs up to 20TB Each, 3 USB Ports (2 USB 3.0 Ports)
2 HDMI/ 2 VGA simultaneous video output
- AI by Recorder
- Supports 2 Channel face detection and recognition, up to 20 face databases and 20,000 face images, 4 Channel Perimeter protection, 8 Channel SMD Plus
- Mobile Software
- iCMOB, gCMOB
- CMS Software
- KVMS Pro Lite
- Processor
- Industrial-grade processor
- IP Camera Input
- 64 Channel
- Operating System
- Embedded LINUX
- User Interface
- Web, Local GUI
- AI by Camera
- Face detection, Face recognition, Video metadata (human, motor vehicles, and non-motor vehicles), Perimeter protection, SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map
- AI by NVR
- Face detection, Face recognition, Perimeter protection, SMD Plus
- Perimeter Performance AI by NVR
- 4 Channels, 10 IVS rules for each channel
- Perimeter Performance of AI by Camera
- All Channels (16 targets/s)
- Video Output
- VGA:1920 × 1080, 1280 × 1024, 1280 × 720; HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
- Face Detection AI by NVR
- 2 channels (up to 12 face images/s each channel)
- Face Detection By Camera
- 16 channels
- Abnormality Alarm
- Camera offline, Storage error, Disk full, IP conflict, MAC conflict, Login lock, Abnormal behaviour of fan, Cyber security exception
- Face Attributes
- Gender, Age group, Glasses, Expressions, Face mask, Beard
- Face Database Capacity
- Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, Gender, Birthday, Address, Credential type, Credential No., Countries & Regions and state can be added to each face image
- SMD Plus by NVR
- 8 channels: Secondary filtering for human and motor vehicle, Reducing false alarms caused by leaves, Rain and lighting condition change
- Face Recognition AI by NVR
- 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s
- Face Recognition AI by Camera
- 16 Channels
- SMD By Camera
- All Channels (32 targets/s)
- Network Bandwidth
- AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
- Network Mode
- Multi-address mode, load balance, fault tolerance and other network port binding modes
- Resolution
- 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960p, D1, CIF, QCIF
- IntelliCheck AI by Camera + Recorder
- Max. 32 Channel, 1 Combined event per Channel/s
- Multi-channel
- Up to 16 channels
- Video Metadata By Camera
- 8 Channels
- ANPR by Camera (Number of Channels)
- All Channels (8 targets/s)
- Encode Strategy
- Instastream, H.264+
- Video Display Split
- Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16
- Decoding Capability
- AI disabled: 2 Channel 32 MP@25 fps, 2 Channel 24 MP@25 fps, 4 Channel 16 MP@30 fps, 5 Channel 12 MP@30 fps, 8 Channel 8 MP@30 fps, 10 Channel 6 MP@30 fps, 12 Channel 5 MP@30 fps, 16 Channel 4 MP@30 fps, 32 Channel 1080p@30 fps AI enabled: 1 Channel 32 MP@25 fps, 1 Channel 24 MP@25 fps, 2 Channel 16 MP@30 fps, 4 Channel 12 MP@30 fps, 6 Channel 8 MP@30 fps, 8 Channel 6 MP@30 fps, 8 Channel 5 MP@30 fps, 12 Channel 4 MP@30 fps, 24 Channel 1080p@30 fps
- Non-motor Vehicle
- Vehicle model, Vehicle color, Number of persons, Helmet.
- License Plate Database Capacity
- 1. Create up to 20,000 plate numbers. 2. Blocklist and allow list
- Motor Vehicle Attributes
- License plate, Plate color, Vehicle body, Vehicle model, Vehicle logo, Calling, Seatbelt, Vehicle interior, Vehicle registration location
- Human Attributes
- Top color, Top type, Bottom color, Bottom type, Hat, Bag, Age, Gender and Umbrella
- Audio Input
- 1 Channel RCA
- Audio Output
- 2 Channel RCA
- Audio Compression
- G.711a, G.711u, PCM, G726, AAC
- Video Compression
- H.265, H.264, MJPEG
- Alarm Input
- 16 Channels
- Alarm Output
- 6 Channels (1 Channel 12 V 1 A output)
- Disk Group
- Support
- Disk Interface
- 4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature
- General Alarm
- Motion detection, Local alarm, Alarm box, Camera external alarm, Network alarm, Scene changing, PIR alarm, Thermal alarm
- Intelligent Alarm
- Face detection, Perimeter protection, Face recognition, Video metadata (Human, Motor vehicles, and non-motor vehicles), SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map
- Recording Mode
- General, Motion detection, Intelligent, Alarm, POS
- Playback
- instant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection)
- Backup Mode
- USB device and network
- Alarm Linkage
- Record, Snapshot, Local alarm output, IPC external alarm output, Access controller, Audio, Buzzer, Log, Preset, Email
- Interface Ports
- 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports), 2 HDMI, 2 VGA, 1 RS232, 1 eSATA Port, 1 RS485
- Ethernet
- 2 (10/100/1000 Mbps Ethernet port, RJ-45)
- Protocols
- HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, Multicast, P2P, Auto Registration, iSCSI, ONVIF 23.12(Profile T/ Profile S/ Profile G), CGI, SDK
- Smart Phone
- iPhone, iPad, Android Phone
- Power Supply
- 100–240 VAC, 50-60 Hz
- Power Consumption
- ≤ 13 W (without HDD)
- Operating Temperature
- –10 °C to +55 °C (14 °F to +131 °F)
- Operating Humidity
- 10%–93% (RH), non-condensing
- Storage Temperature
- -20 °C to +60 °C (–4 °F to +140 °F)
- Dimensions
- 440.0 mm × 415.1 mm x 70.0 mm
- Weight
- 4.74 kg (without HDD)
