English

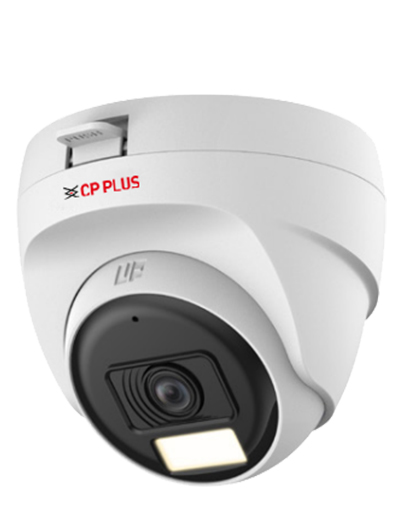

2.4 MP PS CMOS Image Sensor
Max. Outputs 2.4MP (1920 × 1080)@25/30fps
DWDR, Day/Night (ICR), 2D DNR, BLC, HLC
3.6mm Fixed Lens (2.8 mm Optional)
IR Range of 30 Mtrs., Smart IR
4 Signals over 1 Coaxial Cable
Support Built-in Mic
- Image Sensor
- 2.4 MP PS CMOS Image Sensor
- Minimum Illumination
- 0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on)
- Max. Resolution
- 1920 (H) × 1080 (V)
- Shutter Speed
- PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000
- Angle Adjustment
- Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
- White Balance
- Auto, Area white Balance
- DORI Distance
- Lens 3.6 mm: Detect-55.0 m, Observe-22.0 m, Recognize - 11.0 m, Identify-5.5 m Lens 2.8 mm: Detect-44.7 m, Observe-17.9 m, Recognize-8.9 m, Identify-4.5 m
- Gain Control (AGC)
- Auto, Manual
- Lens Type
- Fixed-focal
- Max. Aperture
- F2.0
- Lens Mount
- M12
- Close Focus Distance
- 3.6 mm: 0.8 m, 2.8 mm: 0.5 m
- Lens
- 3.6mm (2.8mm optional)
- Back Light Compensation
- BLC/HLC/DWDR
- Angle of View
- 3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, D: 117°
- S/N Ratio
- >56 dB
- Video Output
- Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Resolution
- 2.4MP (1920 × 1080), 960H (960 × 576/ 960 × 480)
- Frame Rate
- CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H
- Day/Night
- Auto(ICR)/Color/B
- Mirror Function
- Support
- IR Control
- Auto, Manual
- Noise Reduction
- 2D DNR
- IR
- IR Range of 30 Mtr.,
- Iris Control
- Fixed
- IR Mode
- IR Mode
- Operating Temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity
- <95% (RH), non-condensing
- IR Number
- IR light
- Power Source
- 12 VDC ± 30%
- Power Consumption
- Max 2.1 W (12 VDC, LED on)
- Storage Temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
- Storage Humidity
- <95% (RH), non-condensing
- Dimension
- 85.0 mm × 77.1 mm
- Weight
- 0.11kg
