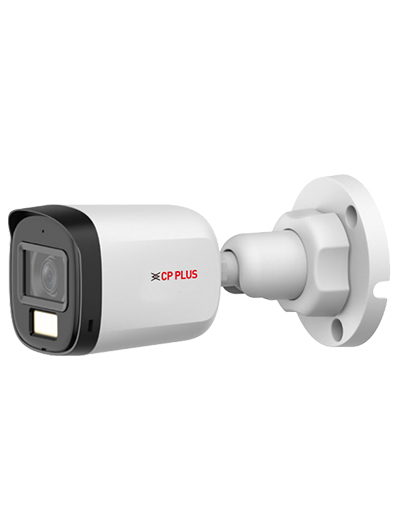

2.4MP PS CMOS Image Sensor
Max. 2.4MP (1920×1080)@25/30fps
DWDR, Day/Night (ICR), 2D DNR, BLC, HLC
3.6mm Fixed Lens (2.8 mm and 6mm optional)
IR Range of 30 Mtrs., Warm Light Range of 20 Mtrs., Smart IR
4 Signals over 1 Coaxial Cable
Support Built-in Mic, IP67
- Image Sensor
- 2.4MP PS CMOS Image Sensor
- Max. Resolution
- 1920 (H) × 1080 (V)
- Minimum Illumination
- 0.02 lux F2.0 (Color, 30 IRE), 0.002 lux F2.0 (B/W, 30 IRE), 0 lux (IR on)
- Angle Adjustment
- Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
- Shutter Speed
- PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s
- White Balance
- Auto, Area white balance
- Lens Mount
- M12
- Close Focus Distance
- 3.6 mm: 0.8 m, 2.8 mm: 0.5 m, 6 mm: 2.4 m
- Gain Control (AGC)
- Auto, Manual
- Max. Aperture
- F2.0
- DORI Distance
- Lens 3.6 mm: 55.0 m (Detect), 22.0 m (Observe), 11.0 m (Recognize), 5.5 m (Identify) Lens 2.8 mm: 44.7 m (Detect), 17.9 m (Observe), 8.9 m (Recognize), 4.5 m (Identify) Lens 6 mm: 102.9 m (Detect), 41.1 m (Observe), 20.6 m (Recognize), 10.3 m (Identify)
- Lens
- 3.6 mm (2.8 mm and 6 mm Optional)
- Lens Type
- Fixed- Focal
- Angle of View
- 3.6 mm: H: 80°, V: 43°, D: 94°
- 2.8 mm: H: 100°, V: 54°, D: 117°
- 6 mm: H: 43°, V: 24°, D: 50°
- Back Light Compensation
- BLC/ HLC/ DWD
- Video Output
- Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Resolution
- 1080p (1920 × 1080), 960H (960 × 576/960 × 480)
- Frame Rate
- CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H
- Noise Reduction
- 2D DNR
- Privacy Mask
- Off/On (8 areas, rectangle)
- Day/Night
- Auto (ICR)/Color/B/W
- Iris Control
- Fixed
- IR Control
- Auto, Manual
- IR Number
- 2 (Warm light), 2 (IR light)
- IR
- IR Range of 30 Mtr.,
- IR Mode
- Smart IR&WL, WL Mode, IR
- Mirror Function
- Support
- Weatherproof Standard
- IP66
- Power Source
- 12 VDC ±30%
- Power Consumption
- Max 3.3 W (12 VDC, LED on)
- Operating Temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity
- <95% (RH), non-condensing
- Storage Temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
- Storage Humidity
- <95% (RH), non-condensing
- Dimension
- 146.1 mm × 70.0 mm × 69.8 mm
- Weight
- 0.1
