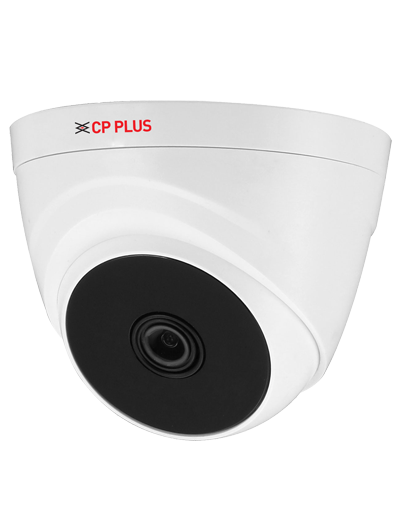

1/2.7” 5MP CMOS Image Sensor (0.9407cm)
Max. 20fps@5MP
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
3.6mm fixed lens (2.8mm, 6mm optional)
IR Range of 20 Mtrs., Smart IR
OSD Menu, control over coaxial cable, 2D-DNR
HD and SD output switchable
- Image Sensor
- 1/2.7” 5MP CMOS Image Sensor (0.9407cm)
- Minimum Illumination
- 0.04Lux/F2.0, 30IRE, 0 Lux IR on
- Shutter Speed
- PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
- White Balance
- Auto / Manual
- Gain Control (AGC)
- Auto / Manual
- ICR
- Auto (ICR)/Manual
- Max. Aperture
- F2.0
- Lens
- 3.6mm (2.8mm, 6mm optional)
- Max Aperture
- F2.0
- Iris
- Fixed
- Lens Type
- Fixed lens/ Fixed Iris
- S/N Ratio
- More than 65dB
- Back Light Compensation
- BLC / HLC / DWDR
- Video Streaming
- 5MP@20fps; 4MP@25/30fps; 1080P@25/30fps
- Video Output
- 1 Ch BNC high definition video output/ CVBS video output (Can Switch)
- Angle of View
- H: 77.5° V: 56.5°
- IR
- IR Range of 20 Mtr., Smart IR
- OSD
- Multi-language
- Casing
- Plastic
- Operating Temperature
- -40°C ~ +55°C/ Less than 95% RH
- Power Source
- 12V DC ±30%
- Power Consumption
- Max 2.9W (12V DC, IR on)
- Dimension
- 85mm × 85mm x 69mm
- Weight
- 0.09Kg.
