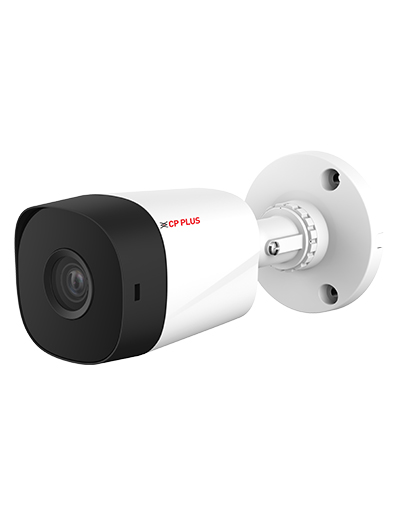

1/2.7” 5MP PS CMOS Image Sensor (0.9407cm)
DWDR, Day/Night (ICR), 2D-NR, AWB, AGC, BLC, HLC
3.6mm fixed lens (2.8mm optional)
IR Range of 20 Mtrs. IP67
CVI/CVBS/AHD/TVI Switchable
- Max. 25fps@5MP (16
- 9 video output)
- Image Sensor
- 1/2.7" 5MP Progressive Scan CMOS (0.9407cm)
- Minimum Illumination
- 0.02 Lux/F2.0, 30IRE, 0 Lux IR on
- Shutter Speed
- PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
- White Balance
- Auto / Manual
- Gain Control (AGC)
- AGC
- ICR
- Auto (ICR)/Manual
- Lens
- 3.6mm (2.8mm optional)
- Max Aperture
- F2.0
- Iris
- Fixed
- Lens Type
- Fixed lens/ Fixed Iris
- Resolution
- 5MP (2880 × 1620); 4MP (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)
- Close Focus Distance
- 2.8 mm: 0.8 m ; 3.6 mm: 1.2 m
- Mount Type
- M12
- S/N Ratio
- More than 65dB
- Privacy Mask
- Off / On (8 area, rectangle)
- DORI Distance
- 2.8mm: 56.0m (Detect) 22.4m(Observe) 11.2m(Recognize) 5.6m(Identify) 3.6mm: 80.0m (Detect) 32m(Observe) 16m(Recognize) 8m(Identify)
- Back Light Compensation
- BLC / HLC / DWDR
- OSD Menu
- Multi-language
- Video Streaming
- CVI: PAL: 5MP@25fps
- 4MP@25fps
- 1080P@25fps
- NTSC: 5MP@25fps
- 4MP@30fps
- 1080P@30fps
- AHD: PAL: 4MP@25fps
- NTSC: 4MP@30fps
- TVI: PAL: 4MP@25fps
- NTSC: 4MP@30fps
- CVBS: 960H
- Video Output
- Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Mirror
- Off/On
- Angle of View
- 3.6 mm: 104° × 88° × 46° (D × H × V); 2.8 mm: 125° × 106° × 56° (D × H × V)
- IR
- IR Range of 20 Mtr., Smart IR
- Casing
- Plastic
- Operating Temperature
- -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
- Storage Temperature
- -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
- Power Source
- 12V DC ±30%
- Power Consumption
- Max 3.7W (12V DC, IR on)
- Weatherproof Standard
- IP67
- Dimension
- 69.8 mm × 69.8 mm × 149.3 mm
- Weight
- 0.15Kg
