English

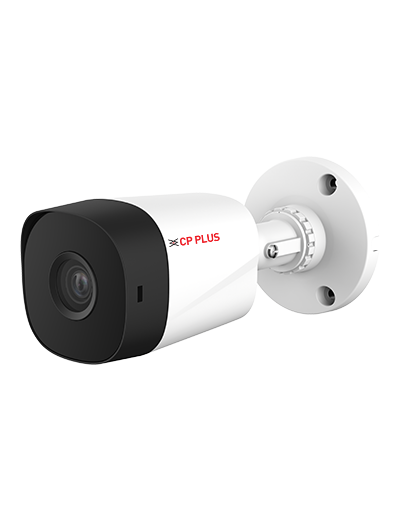

1/2.7” 5MP PS CMOS Image Sensor (0.9407 cm)
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
3.6mm fixed lens (2.8mm optional)
IR Range of 30 Mtrs., IP67
Support Built-in Mic
OSD Menu, control over coaxial cable, 2D-DNR
CVI/CVBS/AHD/TVI Switchable
- Max. 25fps@5MP (16
- 9 video output)
- Image Sensor
- 1/2.7
- Minimum Illumination
- 0.02 Lux/F2.0, 30 IRE, 0 Lux IR on
- Max. Resolution
- 2880 (H) × 1620 (V)
- Shutter Speed
- PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s
- White Balance
- Auto, Manual
- Lens Mount
- M12
- Gain Control (AGC)
- Auto
- Max. Aperture
- F2.0
- Lens
- 3.6mm (2.8mm optional)
- Close Focus Distance
- 3.6 mm: 1.2 m, 2.8 mm: 0.8 m
- DORI Distance
- 3.6mm: 80.0m (Detect) 32m(Observe) 16m(Recognize) 8m(Identify)2.8mm: 56.0m (Detect) 22.4m(Observe) 11.2m(Recognize) 5.6m(Identify)
- Lens Type
- Fixed
- Angle of View
- 3.6 mm: 104° × 88° × 46°, 2.8 mm: 125° × 106° × 56°
- Back Light Compensation
- BLC, HLC, DWDR
- Resolution
- 5M (2880×1620), 4M (2560×1440), 2M (1920×1080), 960H (960 × 576/960 × 480)
- Video Output
- Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Frame Rate
- CVI: PAL: 5M@25 fps, 4M@25 fps, 2M@25 fps , NTSC: 5M@25 fps, 4M@30 fps, 2M@30 fps AHD: PAL: 4M@25 fps, NTSC: 4M@30 fps, TVI: PAL: 4M@25 fps, NTSC: 4M@30 fps, CVBS: 960H
- Noise Reduction
- 2D DNR
- Iris Control
- Fixed
- Audio Interface
- Audio Interface
- Day/Night
- Auto (ICR)/ Manua
- Mirror Function
- Support
- IR Control
- Auto, Manual
- IR
- IR Range of 30 Mtr.,
- Smart IR
- Support
- Operating Humidity
- <95% (RH), non-condensing
- Operating Temperature
- –40°C to +55°C (–40°F to +131°F)
- Power Source
- 12 VDC ± 30%
- Power Consumption
- Max 3.7W (12V DC, IR on)
- Dimension
- 69.8 mm × 69.8 mm × 149.3 mm (2.75
- Net Weight
- 0.15Kg
