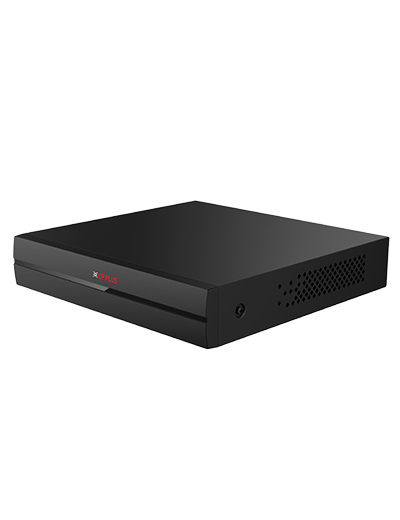

Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth
Supports Full-channel AI Instastream
Support 1 SATA HDD up to 6TB Each, 2 USB Ports
Up to 4 channels video stream (analog channel) SMD Plus.
1 HDMI / 1 VGA Simultaneous Video Output
Instastream/H.265 dual-stream video compression
- Mobile Software
- iCMOB, gCMOB
- CMS Software
- KVMS Pro Lite
- Processor
- Embedded processor
- Operating System
- Embedded LINUX
- IP Camera Input
- 4+1 channels, each channel up to 2MP
- Two-way Talk
- Reuse audio in/out, RCA
- User Interface
- GUI
- Performance SMD Plus
- 4 Channels
- AI Search SMD
- Search by target classification (Human, Vehicle)
- Video Input
- 4 channel, BNC
- Video Output
- 1 HDMI, 1 VGA
- Video Compression
- AI Instastream/Instastream/H.265/H.264+/H.264
- OSD
- Camera title, Time, Video loss, Camera lock, Motion detection, Recording
- Resolution
- 1080N; 720P; 960H; D1; CIF
- Video Recording
- Main Stream: All channels 1080N/720P/960H/D1/CIF/(1~25/30fps) Sub stream: CIF (1~15 fps)
- Video Display Split
- 1/4
- Bit Rate
- 32 kbps–4096 kbps per channel
- Audio Input
- 1 channel, RCA
- Audio Output
- 1 channel, RCA
- Audio Sample Rate
- 8KHz, 16 bit Per Channel
- Audio Bit Rate
- 64Kbps Per Channel
- Motion Detection
- Support
- Video Loss
- Support
- Audio Compression
- G.711A, G.711U, PCM
- Camera Blank
- Support
- Smart Phone
- iPhone, iPad, Android Phone
- Hard Disk
- 1 SATA port, up to 6TB Each
- Trigger Events
- Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Playback
- 1/4 Ch.
- Recording Mode
- Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Search Mode
- Time/Date, Alarm, MD & Exact search (accurate to second)
- Playback Function
- Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
- Backup Mode
- USB Device/Network
- Interface Ports
- 2 USB Ports (USB 2.0)
- Max User Access
- 128 users
- Record Interval
- 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
- Ethernet
- 1 RJ-45 port (100Mbps)
- Protocols
- HTTP
- HTTPS
- TCP/IP
- IPv4/IPv6
- 3G/4G
- UPnP
- RTSP
- UDP
- SMTP
- NTP
- DHCP
- DNS
- IP Filter
- PPPoE
- DDNS
- FTP
- Alarm Server
- InstaOn cloud
- IP Search, ONVIF 16.12, CGI Conformant
- Power Supply
- DC12V/1.5A
- Power Consumption
- <7W (without HDD)
- Working Temp
- -10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% (RH)
- Dimension
- 198 mm × 203.0 mm × 41.5 mm
- Weight
- 0.57kg (without HDD)
