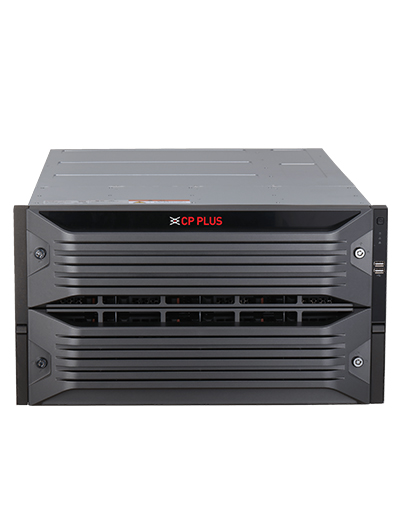

Max 320-ch IP camera inputs.
48 bays, SATA, Hot-Swap.
Max 800 Mbps incoming/recording/forwarding bandwidth.
Supports video stream direct storage mode and IPSAN storage mode.
Supports N+M cluster.
Supports RAID 0/1/5/6/10/50/60,Hot spare.
Supports Automatic Network Replenishment (ANR).
1+1 redundant 80PLUS platinum power supply
- Processor
- 64-bit high-performance multi-core processor
- Operating System
- Embedded Linux OS
- IP Camera Input
- 320 Channel
- User Interface
- Web (PCAPP)
- Network Mode
- NIC binding mode such as multiple-address mode, load balance, fault-tolerance, link aggregation, etc
- N+M Cluster
- N+M (Support)
- Record Mode
- Auto record
- manual record
- search video detection
- IO alarm
- thermal imaging
- intelligent event
- all record file
- Video Compression
- Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- Audio Compression
- G.711A; G.711U; PCM; G726
- Disk Interface
- 48 Slots, SATA, Max.18 T/HDD hot swapping CMR support enterprise-grade HDD
- Disk Group
- Support
- General Alarm
- Motion detect; tampering; IPC external alarm
- Anomaly Alarm
- IPC offline alarm
- storage error
- HDD full
- video frame loss
- SSD exception
- IP conflict
- MAC conflict
- login lock
- fan malfunction
- no HDD
- network security exception
- power exception
- disk health exception
- RAID exception
- storage pool exception
- temperature alarm
- share service
- Alarm Linkage
- Record
- snapshot (full image)
- alarm uploading
- remote device alarm output
- camera audio
- buzzer
- log
- preset
- email, smart tracking and warning light. Disarming alarm linkage action by period or one-click sync disarm config with channels
- Record Management
- Supports record control (continuous, event-based, scheduled, scheduled & event-based)
- Storage Pool
- Support
- iSCSI
- Supports client and Server
- Network Disk
- Supports client
- Browser
- Chrome; PCAPP; IE9 or higher; Firefox
- Playback Function
- 1. Play, pause, stop, fast forward, fast backward, reverse play, frame by frame 2. Full-screen, backup (clip; file), snapshot, digital zoom, audio on/of
- Multi-channel Playback
- Max. 16-channel playback
- AI by Camera
- Face detection, face recognition, IVS (abandoned object, missing object, loitering, crowd gathering, parking, fence-crossing, fast moving, tripwire and intrusion), video metadata (human, vehicle, non-motor vehicle), vehicle recognition, people counting (fisheye or people counting camera required),face & body detection, crowd distribution, smart thermal (call detection, visible channel- smoking detection, thermal channel-smoking detection)
- RAID
- RAID 0/1/5/6/10/50/60; (with enterprise-grade HDD)
- Video Direct Storage (Private Protocol)
- Incoming: 320-channel (bandwidth: 800 Mbps), Recording: 320-channel (bandwidth: 800 Mbps), Outgoing: 320-channel (bandwidth: 800 Mbps), Playback: 32-channel (bandwidth: 64 Mbps)
- Video Direct Storage (Onvif)
- Incoming: 320-channel (bandwidth: 800 Mbps), Recording: 320-channel (bandwidth: 800 Mbps), Outgoing: 320-channel (bandwidth: 800 Mbps), Playback: 32-channel (bandwidth: 64 Mbps)
- Video Direct Storage (Auto Connect)
- Incoming: 320-channel (bandwidth: 800 Mbps), Recording: 320-channel (bandwidth: 800 Mbps), Outgoing: 320-channel (bandwidth: 800 Mbps), Playback: 32-channel (bandwidth: 64 Mbps)
- Picture Direct Storage
- 280-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback( I/O size of VMS is 64 KB) 400-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback(I/O size of VMS is 512 KB)
- IPSAN Performance
- 280-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback( I/O size of VMS is 64 KB) 400-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback(I/O size of VMS is 512 KB)
- Backup Mode
- HDD, peripheral USB storage device
- Interface Ports
- 1 eSATA Port, 1 RS-232 port, for debug or COM data transmission, 4 ports. 2 USB2.0 ports at the front panel and 2 USB3.0 ports at the rear panel , 1 HDMI Port, only for debug
- Ethernet
- 4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports. (gigabit electrica port) 1 RJ-45 10/100 Mbps self-adaptive Ethernet ports. (100 Mbps electrical port)
- Protocols
- HTTP
- HTTPS
- TCP/IP
- IPv4
- RTSP
- UDP
- SMTP
- NTP
- DHCP
- DNS
- DDNS
- InstaOn
- iSCSI
- FTP
- SMB
- NFS, ONVIF (Profile S, T and G)
- CGI
- SDK
- Operating Altitude
- 5000 m (16404.20 ft)
- Controller
- Single controller
- Cache
- 8 GB by default (extendable to 64 GB)
- Network Port Extension
- 4 × 1-GbE LAN ports (optional), 2 × 10-GbE optical fiber ports (optional)
- Storage Method
- Internal HDD and network disk
- PTZ Smart Track
- Works with camera for manual tracking, auto tracking, click positioning and select positioning
- Thermal
- Works with camera for fire alarm, temperature alarm, temperature difference alarm, hot spot, cold spot, smoking and calling
- Fisheye Dewarp
- Supports dewarping for fisheye cameras
- People Counting
- Works with camera for tripwire people counting, regional people counting and queue people counting
- Power Redundancy
- 1+1 redundant power
- Fan
- Intelligent speed regulation fan
- Operating Temperature
- 0 °C to 45 °C (+32 °F to +113 °F)
- Operating Humidity
- 10%–80% (RH), non-condensing
- Power Supply
- 100-240 VAC 50-60 Hz
- Power Consumption
- <100 W (without HDD, idling) <500 W (all HDDs connected)
- Dimension
- Chassis: 446 mm × 261.4 mm × 736.5 mm (17.56
- Weight
- 35.2 kg (77.60 lb)
