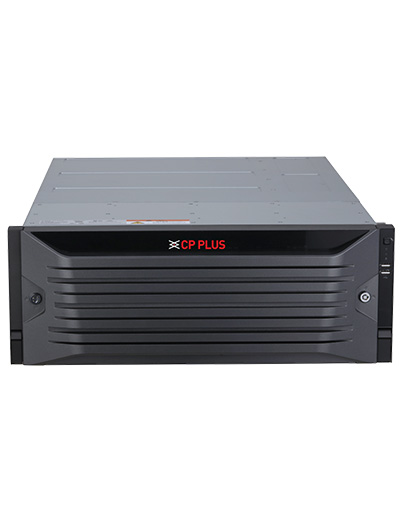

Max 256 IP Camera Inputs
24 HDDs, SAS, Hot-Swap
Max 512 Mbps incoming/recording/forwarding bandwidth.
Standard dual controller for hardware redundancy
64-bit High-performance multi-core processor
Supports video stream/ Picture direct storage mode and IPSAN storage mode
Supports video stream/ Picture direct storage mode and IPSAN storage mode
Supports Automatic Network Replenishment (ANR)
SAS cascade for expanded storage space
1+1 redundant 80PLUS platinum power supply
Modular and drawer-like design
- Processor
- 64-bit high-performance multi-core processor
- Controller
- Dual controller
- Operating System
- Embedded LINUX
- Cache
- 8 GB by default (extendable to 32 GB)/controller
- IP Camera Input
- 256 Channel
- User Interface
- Web
- SAS
- 1 × SAS (up to 12 Gbps)/controller
- Network Port
- 1 x 1-GbE management port/controller; 4 × 1-GbE LAN ports/controller
- Network Port Extension
- 4 × 1-GbE LAN ports/controller (optional) 2×10-GbE optical fiber ports/controller (optional)
- eSATA
- 1 × eSATA/controller
- RS-232
- 1 × DB9 /controller
- USB
- 2 × USB3.0 and 2 × USB2.0/controller
- HDMI
- 1 x HDMI/controller, only for debug
- HDD Interface
- 24 slots, SATA; SAS Max.20 TB/HDD hot swapping CMR support enterprise-grade HDD
- Disk Bay
- 24
- RAID
- RAID 0/1/5/6/10/50/60; (with enterprise-grade HDD)
- Disk Group
- Support
- iSCSI
- Supports client and Server
- Network Disk
- Supports client
- Record Management
- Supports record control (continuous, event-based, scheduled, scheduled & event-based)
- Storage Pool
- Support
- Thermal Camera Compatibility
- Works with camera for fire alarm, temperature alarm, temperature difference alarm, hot spot, cold spot, smoking and calling
- AI by Camera
- Face detection, face recognition, IVS (abandoned object, missing object, loitering, crowd gath ering, parking, fence-crossing, fast moving, tripwire and intrusion), video metadata (human, vehicle, non-motor vehicle), vehicle recognition, people counting (fisheye or people counting camera required), face & body detection, crowd distribution, smart thermal (call detection, visible channel- smoking detection, thermal channel-smoking detection)
- People Counting
- Works with camera for tripwire people counting, regional people counting and queue people counting
- Video Direct Storage (Private Protocol)
- Incoming: 256-channel (bandwidth: 512 Mbps) Recording:256-channel (bandwidth: 512 Mbps) Outgoing: 256-channel (bandwidth: 512Mbps) Playback: 16-channel (bandwidth: 32Mbps)
- Video Direct Storage (Onvif)
- Incoming: 256-channel (bandwidth: 512 Mbps) Recording: 256-channel (bandwidth: 512 Mbps) Outgoing: 256-channel (bandwidth: 512 Mbps) Playback: 16-channel (bandwidth: 64 Mbps)
- Video Direct Storage (Auto Connect)
- Incoming: 256channel (bandwidth: 512 Mbps) Recording:256-channel (bandwidth: 512 Mbps) Outgoing: 256-channel (bandwidth: 512 Mbps) Playback: 16-channel (bandwidth:32Mbps)
- Picture Direct Storage
- Incoming: 120-channel (550 KB/picture) Recording:120-channel (550 KB/picture) Outgoing: 120-channel (550 KB/picture)
- IPSAN Performance
- 180-channel × 2 Mbps video stream writing and 12-channel × 2 Mbps video playback ( I/O size of VMS is 64 KB)
- Bullet-PTZ Smart Track
- Works with camera for manual tracking, auto tracking, click positioning and select positioning
- Fisheye Dewarp
- Supports dewarping for fisheye cameras
- Multi-channel Playback
- Web playback, max. 16-channel playback
- Record Mode
- Auto record
- manual record
- search video detection
- IO alarm
- thermal imaging
- intelligent event
- all record file
- Storage
- Internal HDD and network disk
- Browser
- Chrome; PCAPP; IE9 or higher; Firefox
- Network Mode
- NIC binding mode such as multiple-address mode, load balance, fault-tolerance, link aggrega tion, etc
- Backup
- HDD, peripheral USB storage device
- Playback Function
- 1. Play, pause, stop, fast forward, fast backward, reverse play, frame by frame 2. Full-screen, backup (clip
- file), snapshot, digital zoom, audio on
- off
- General Alarm
- Motion detect; tampering; IPC external alarm
- Anomaly Alarm
- IPC offline alarm
- storage error
- HDD full
- video frame loss
- SSD exception
- IP conflict
- MAC conflict
- login lock
- fan malfunction
- no HDD
- network security exception
- power exception
- disk health exception
- RAID exception
- storage pool exception
- temperature alarm
- share service
- Alarm Linkage
- Record
- snapshot (full image)
- alarm uploading
- remote device alarm output
- camera audio
- buzzer
- log
- preset
- email, smart tracking and warning light. Disarming alarm linkage action by period or one-click sync disarm config with channels
- Protocols
- HTTP
- HTTPS
- TCP/IP
- IPv4
- RTSP
- UDP
- SMTP
- NTP
- DHCP
- DNS
- DDNS
- InstaOn
- iSCSI
- FTP
- SMB
- NFS
- ONVIF (Profile S)
- CGI
- SDK
- Video Compression
- Instastream, H.265, H.264+, H.264, MJPEG
- Audio Compression
- G.711A; G.711U; PCM; G726
- Power Redundancy
- 1+1
- Power Supply
- 100–127V/200–240V AC, 50/60Hz, 5A/2.5A
- Fan
- Intelligent speed regulation fan
- Power Consumption
- <120 W (without HDD, idling) <500 W (all HDDs connected)
- Operating Temperature
- 0°C to 45°C (+32°F to +113°F)
- Operating Humidity
- 10%–80% (RH) (non-condensation)
- Operating Altitude
- ≤5000 m
- Dimension
- Chassis: 446 mm × 175mm × 736.5 mm (17.56
- Net Weight
- 29kg
