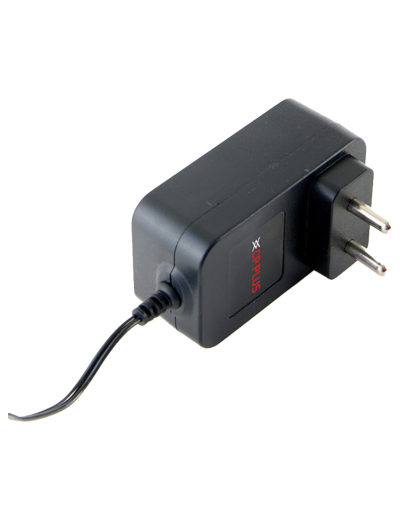

Wide 110–265VAC input with stable 12V/2A, 24W output.
Low ripple performance ensuring clean and reliable power delivery.
Built-in OCP, 2kV Hi-Pot isolation & surge protection
±5% line and load regulation for consistent output stability.
High operational efficiency up to 75% for energy-optimized performance.
- Output
- Voltage: 12VDC, Range: 11.40 -12.60V, Min. Load: 0.1A, Rated Load: 2A, Output Power: 24W
- Input Voltage Range
- 110-265VAC
- Rated Frequency
- 50/60Hz Variation Frequency : 47 – 63Hz
- Rated Input Voltage
- 140-240VAC
- Input Current
- 0.75A Max.
- Combined Load/ Line Regulation
- Voltage: 12VDC, Min. Load: 0.1A, Rated Load: 2A, Line Regulation: ± 5%, Load Regulation: ± 5%
- Ripple and Noise
- 250mVp-p; Under normal voltage & nominal load
- Turn on Delay Time
- 3S Max. @ 115V AC input and output Max. Load
- Rise Time
- 100mS Max. @ 115V AC input and output Max. Load
- Hold Up Time
- 8mS Min. @ 115V AC input and output Max. Load
- Fall Time
- 50mS @ Max. Load
- Surge Immunity
- 2kV L-N
- Hi-Pot Test
- 2kV@ 10mA
- Output voltage
- 11.4V – 12.6V
- No Load Power Consumption
- <0.3W
- OCP Power
- 2.2A min @ 230VAC
- Efficiency
- Average efficiency 75% minimum @ 25%, 50%, 75% & 100% of full-loading and 230V AC input (After warm up 30 minutes)
- Certificates
- ISO 9001: 2015, ISO 20000-1: 2018, ISO 14001: 2015, ISO 45001: 2018, ISO 50001: 2018, CE, FCC and RoHS, BIS
- Overshoot
- 10% Max. When power supply @ turns on or turn off
- Operating Temperature
- 0°C to 40°C (Full load, Normal Operation)
- Storage Temperature
- -40°C to 70°C
