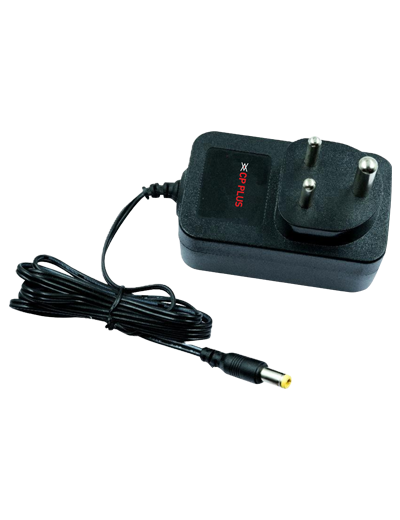

Wide 100-285VAC input with stable 12V/3A, 36W output.
Low ripple performance ensuring clean and reliable power delivery.
Built-in OCP, 3kV Hi-Pot isolation and surge protection
±5 line and load regulation for consistent output stability.
High operational efficiency up to 77 for energy-optimized performance
- Output
- Voltage: 12VDC, Min. Load: 0.1A, Rated Load: 3A, Output Power: 36W
- Input Voltage Range
- 100-285V AC
- Rated Frequency
- 50/60Hz Variation Frequency : 47 – 63Hz
- Rated Input Voltage
- 140-240V AC
- Input Current
- 0.8A Max.@ Any input AC voltage & output full load
- Combined Load/ Line Regulation
- Voltage: 12VDC, Min. Load: 0.1A, Rated Load: 3A, Line Regulation: ± 5%, Load Regulation: ±5%
- Turn on Delay Time
- 3S Max. @ 115V AC input and output Max. Load
- Hold Up Time
- 10mS Min. @ 115V AC input and output Max. Load
- Fall Time
- 50mS @ Max. Load
- Surge Immunity
- 2kV L-N
- Hi-Pot Test
- 3kV@ 10mA
- Output voltage
- 11.4V-12.6V
- No Load Power Consumption
- <0.3W
- OCP Power
- 3.6A min @ 230VAC
- Certificates
- ISO 9001: 2015, ISO 20000-1: 2018, ISO 14001: 2015, ISO 45001: 2018, ISO 50001: 2018, CE, FCC and RoHS, BIS
- Overshoot
- 10% Max. When power supply @ turns on or turn off
- Operating Temperature
- 0°C to 40°C (Full load, Normal Operation)
- Storage Temperature
- -40°C to 85°C
