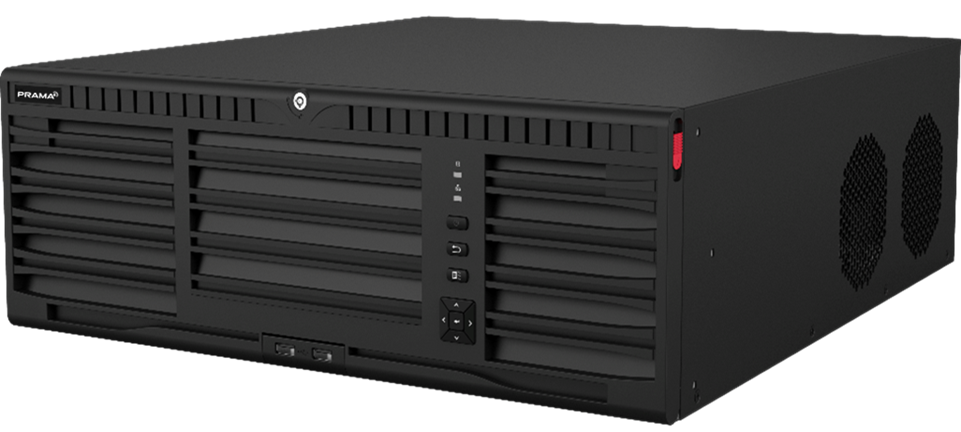

PT-NR3A64-M16/R

Up to 64-ch IP camera inputs

Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity

Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth

2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs

Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera

Advanced streaming technology enables smooth live view in poor network conditions

Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks

Redundant power supply

265+ compression effectively reduces the storage space by up to 75%

Dual-stream recording saves bandwidth

Adopt stream over TLS encryption technology which provides more secure stream transmission service

Support double verification for playback and downloading

Provide independent HDMI and VGA outputs

HDMI video output at up to 8K or dual 4K resolution

16 SATA interfaces for HDD connection (up to 14 TB capacity per HDD)

1 e-SATA interface for HDD connection

16-ch synchronous playback

Support multiple VCA (Video Content Analytics) events

Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting

POS information overlay on live view and playback, and POS triggered recording and alarm

2 self-adaptive 10/100/1000 Mbps Ethernet interfaces

Smooth streaming technology

Support web access without plug-in
