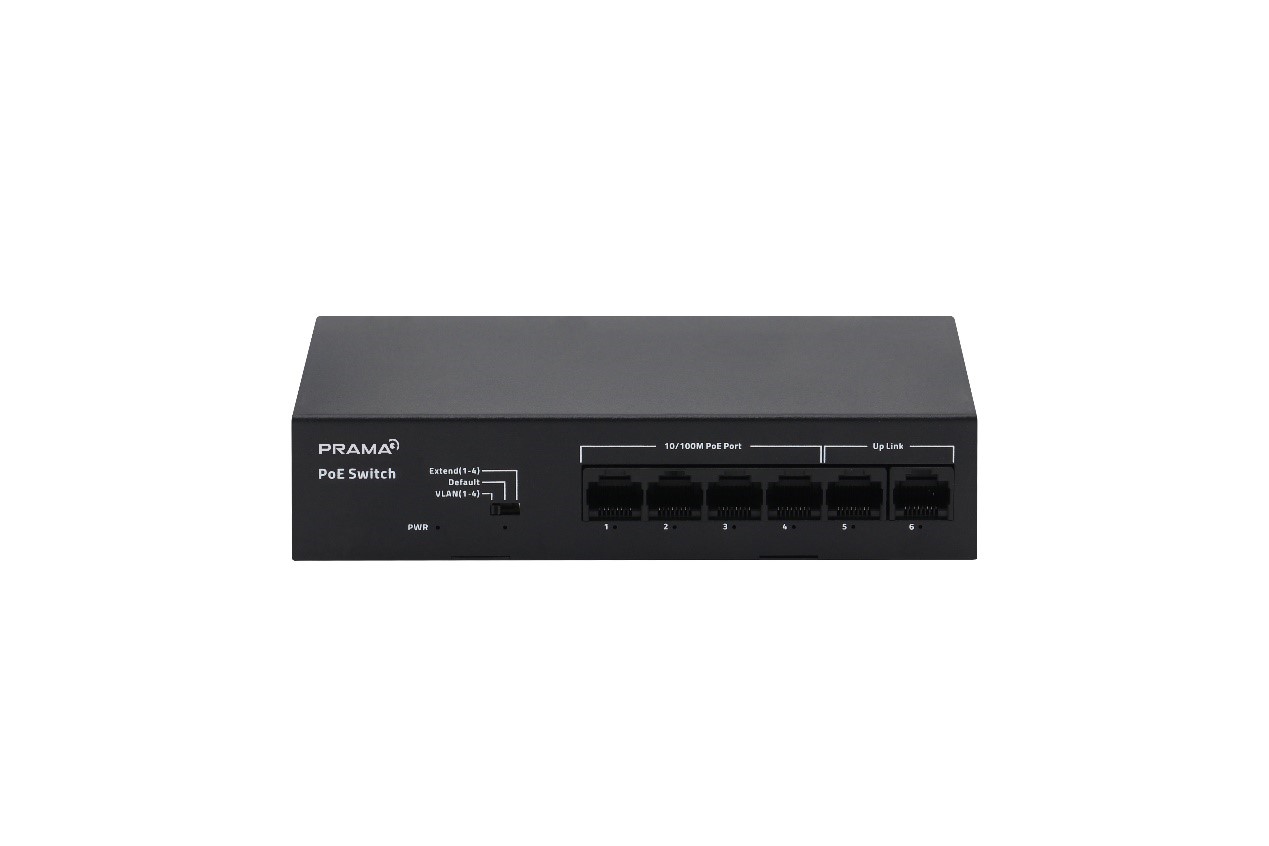

4*100Mbps PoE ports + 2*100Mbps uplink RJ45 ports
Complies with IEEE 3, IEEE 802.3u, and IEEE 802.3x standards
RJ45 port supports 10/100Mbps adaptive
PoE ports automatically enable PoE watchdog mode in VLAN and Extend modes
Supports automatic port flipping (Auto MDI/MDIX)
Adopting a storage and forwarding exchange mechanism
The panel indicator LED will monitor the working status and assist in fault analysis
Supports VLAN, Default, and Extend modes
- Flow control method
- Full duplex uses IEEE 3x standard, while half duplex uses Back pressure standard
- Interface
- 4*100Mbps PoE ports 2*100Mbps uplink RJ45 ports
- Port Standard
- IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control)
- Switching Capacity
- 1.2 Gbps
- Packet Forwarding Rate
- 0.8928 Mpps
- Packet Buffer
- 768 Kbit
- MAC Address Table
- 2K
- Transmission Method
- Store and Forward
- PoE Standard
- IEEE802.3af (15.4W) IEEE802.3at (30W)
- POE Port Output Voltage
- DC 44-57V
- PoE Ports
- Port 1-4 PoE power output <30W
- Power Supply
- AC 100-240V DC 48W
- Mainboard Power Consumption
- 1.58W
- Structure Information
- Product Dimension: 160*90*35mm Packaging Dimension: 203*160*45mm Product Net Weight: Approx. 0.41KG Product Gross Weight: Approx. 0.47KG
- Package Contents
- 1 Switch, 1 User manual
- Surge Protection
- Port Surge: common mode 4KV, differential mode 2KV
- Operating Temperature
- 0°C to 40°C
- Storage Temperature
- -40°C to 70°C
- Operation Humidity
- 10%~90%, non-condensing
- Storage Humidity
- 5%~95%, non-condensing
- PWR LED
- Green LED On: Powered on Green LED Off: Powered off
- 1-10 LED
- Green LED On: Link normal Green LED Off: Link blocked Blinking: Data transmitting
- VLAN/Default/Extend Modes Buttons Light
- Green LED On: VLAN (Isolation) mode Green LED Off: Default mode Flashing: Extended mode
- VLAN/Default/Extend Modes Buttons
- VLAN: Isolation mode, 1-4 ports isolated from each other, communicating with 5-6 ports, port PoE watchdog mode enabled Default: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive, port PoE watchdog mode is turned off Extend: Link extension mode, 1-4 port PoE power supply and data transmission distance can be extended to 250 meters, transmission speed is 10Mbps, port PoE watchdog mode enabled
