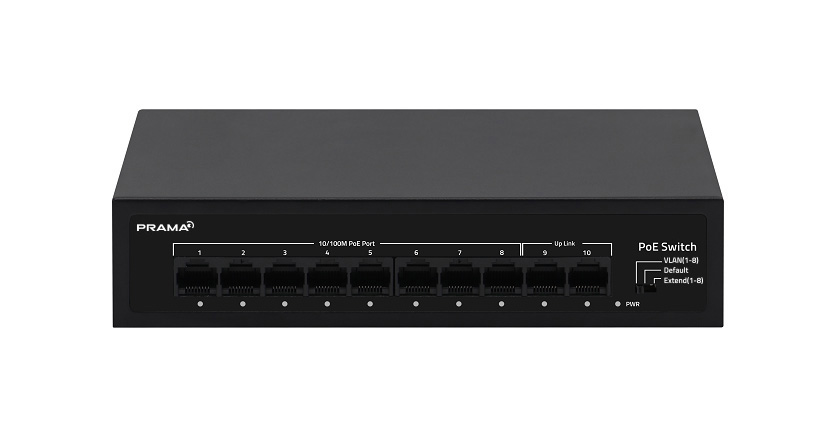

8*100Mbps PoE ports + 2*100Mbps uplink RJ45 ports
Complies with IEEE 3, IEEE 802.3u, and IEEE 802.3x standards
RJ45 port supports 10/100Mbps adaptive communication
PoE ports automatically enable PoE watchdog mode in VLAN and Extend modes
Supports automatic port flipping (Auto MDI/MDIX)
Adopting a storage and forwarding switch system
All ports support line speed switching
The panel indicator LED will monitor the working status and assist in fault analysis
Supports VLAN, Default, and Extend modes
- Flow control method
- Full duplex adopts IEEE 3x standard, while half duplex adopts Back pressure standard
- Interface
- 8*100Mbps PoE ports 2*100Mbps uplink RJ45 port
- Port Standard
- IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control)
- Switching Capacity
- 2 Gbps
- Packet Forwarding Rate
- 1.488 Mpps
- Packet Buffer
- 768 Kbit
- MAC Address Table
- 2K
- Transmission Method
- Store and Forward
- PoE Standard
- IEEE802.3af (15.4W) IEEE802.3at (30W)
- POE Port Output Voltage
- DC 44-57V
- PoE Ports
- Port 1-8 PoE power output <30W
- Power Supply
- AC 100-240V DC 96W
- Mainboard Power Consumption
- 1.98W
- Structure Information
- Product Dimensions: 200*118*44mm Packaging Dimensions: 245*190*60mm Product Net Weight: Approx. 0.61KG Product Gross Weight: Approx. 0.69KG
- Package Contents
- 1 Switch, 1 user manual
- Surge Protection
- Port Surge: common mode 4KV, differential mode 2KV
- Operating Temperature
- 0°C to 40°C
- Storage Temperature
- -40°C to 70°C
- Operation Humidity
- 10%~90%, non-condensing
- Storage Humidity
- 5%~95%, non-condensing
- PWR LED
- Green LED On: Powered on Green LED Off: Powered off
- 1-10 LED
- Green LED On: Link normal Green LED Off: Link blocked Flashing: Data transmitting
- VLAN/Default/Extend Modes Buttons
- VLAN: Isolation mode, 1-8 ports isolated from each other, communicating with 9-10 port, PoE port watchdog mode enabled
- Default: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive, PoE port watchdog mode disabled
- Extend: Link extension mode, 1-8 port PoE power supply and data transmission distance can be extended to 250 meters, transmission speed is 10Mbps, PoE port watchdog mode enabled.
