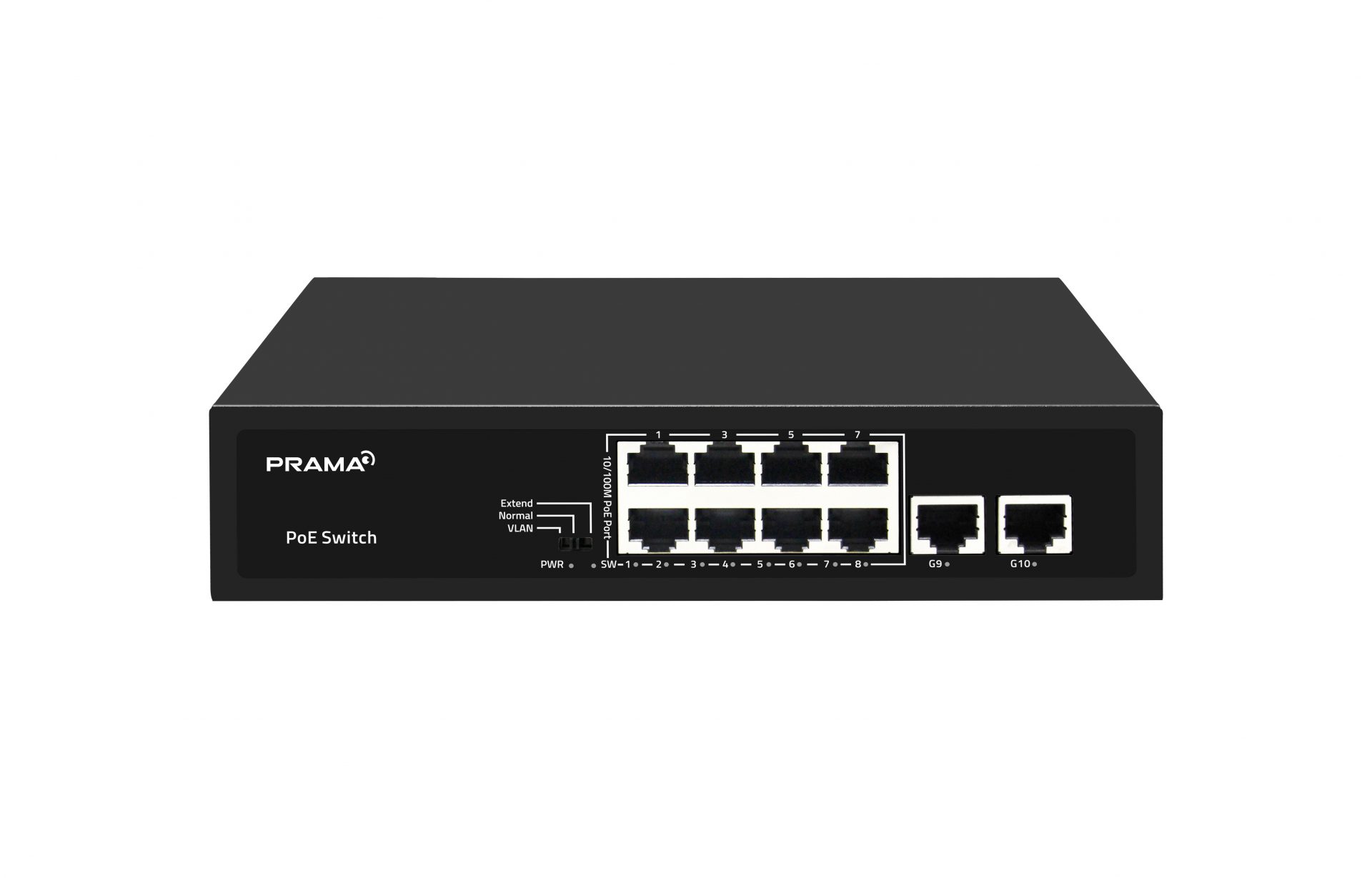

8*100Mbps PoE ports and 2*1G uplink RJ45 port
Complies with IEEE 3, IEEE 802.3u, and IEEE 802.3x standards
RJ45 port supports 10/100Mbps adaptive
PoE port automatically activates PoE watchdog mode in VLAN and Extend modes
Supports automatic port flipping (Auto MDI/MDIX)
The panel indicator LEDs will monitor the working status and assist in fault analysis
- Flow control method
- Full duplex uses IEEE 3x standard, while half duplex uses Back pressure standard
- Supports three modes
- VLAN, Default, and Extend
- Interface
- 8*100Mbps PoE ports 2*1G uplink RJ45 port
- Port Standard
- IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control)
- Bandwidth
- 5.6Gbps
- Packet Forwarding Rate
- 4.166Mpps
- Packet Buffer
- 1Mbit
- MAC Address Table
- 2K
- Transmission Method
- Store and Forward
- PoE Standard
- IEEE802.3af (15.4W) IEEE802.3at (30W)
- PoE Port Output Voltage
- DC 44-57V
- PoE Ports
- Port 1-8 PoE power output <30W
- Surge Protection
- Port Surge: common mode 4KV, differential mode 2KV Electrostatic ESD: Air 8KV, Contact 6KV (Class B)
- Operating Temperature
- 0~40°C
- Storage Temperature
- -40 °C to 70 °C
- Operation Humidity
- 10%~90%, non-condensing
- Storage Humidity
- 5%~95%, non-condensing
- Power Supply
- AC 100-240V, 50/60Hz DC 96W
- Mainboard Power Consumption
- 2.3W
- Structure Information
- Product Dimensions: 200*118*44mm Packaging Dimensions: 245*190*60mm Product Net Weight: 0.62 KG Product Gross Weight: 0.93 KG
- Package Contents
- 1 Switch, 1 power cord, 1 user manual
- PWR Green LED
- On: Powered on Off: Powered off
- SW Green LED
- On: VLAN (Isolation mode) Flashing: Extend mode Off: Normal mode
- 1-8 Green LED
- On:10/100M Link normal Off: Link blocked Flashing: Data transmitting
- 9-10 Green LED
- On:10M/100M/1G Link normal Off: Link blocked Flashing: Data transmitting
- VLAN/Normal/Extend Modes Buttons
- VLAN: Isolation mode, 1-8 ports isolated from each other, communicating with 9- 10 ports, and enable PoE watchdog mode on ports. Normal: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive, and port PoE watchdog mode turned off; Extend: Link extension mode, 1-8 ports data transmission distance can be extended to 250 meters, transmission speed is 10Mbps, and enable PoE watchdog mode on ports.
